Ring High Temperature Molybdenum Disilicide Heater 3.5kW Molybdenum Silicon Rod

Name: Ring High Temperature Molybdenum Disilicide Heater 3.5kW Molybdenum Silicon Rod
Brand: ZHENGZHOU SONGYU HIGH TEMPERATURE TECHNOLOGY CO.,LTD
SKU: Ring
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SONGYU

Model Number: Ring

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Zhengzhou Songyu High Temperature Technology Co., Ltd

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Hot Zone Length:	200mm	Maximum Power:	3.5 KW
Maximum Temperature:	1800°C	Length:	300mm
Diameter:	6mm	Density:	6.4 G/cm³
Product Type:	Heating Element	Cold Zone Length:	100mm
Material:	Molybdenum Disilicide (MoSi2)	Application:	High Temperature Heating In Industrial And Laboratory Settings
Thermal Conductivity:	45 W/m·K	Shape:	Ring
Voltage:	220 V	Electrical Resistivity:	1.2 X 10^-4 Ω·m

Hot Zone Length:	200mm
Maximum Power:	3.5 KW
Maximum Temperature:	1800°C
Length:	300mm
Diameter:	6mm
Density:	6.4 G/cm³
Product Type:	Heating Element
Cold Zone Length:	100mm
Material:	Molybdenum Disilicide (MoSi2)
Application:	High Temperature Heating In Industrial And Laboratory Settings
Thermal Conductivity:	45 W/m·K
Shape:	Ring
Voltage:	220 V
Electrical Resistivity:	1.2 X 10^-4 Ω·m

Product Description

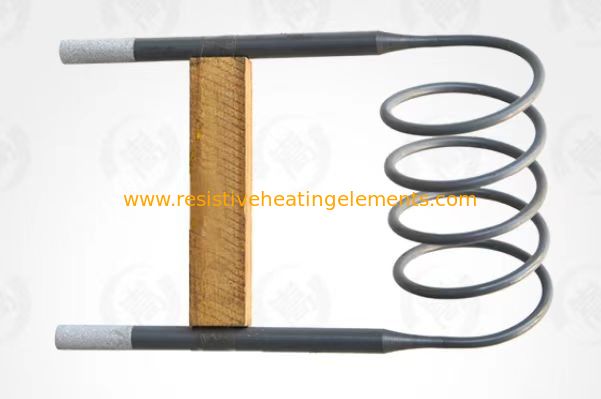

Ring-shaped MoSi₂ heating element

The ring-shaped silicon-molybdenum rod heating element has the following features: it is made of molybdenum disilicide (MoSi₂) material, is resistant to high temperatures, and can work stably in an environment of 1600℃ - 1800℃; the ring structure makes the heat uniform and can efficiently transfer heat; it has good chemical stability, is resistant to oxidation and corrosion, and is not easy to react with materials in the furnace; the thermal expansion coefficient is adapted to furnace materials such as ceramics, has good thermal shock stability, and is resistant to rapid cooling and heating; the resistance is stable, and the temperature rise and temperature control are accurate, which is conducive to the realization of the process temperature curve, and is often used in high-end thermal engineering scenes such as high-temperature sintering and crystal growth.

Hot Zone Length	200mm
Maximum Power	3.5kW
Maximum Temperature	1800°C
Length	300 mm
Diameter	6 mm
Density	6.4 g/cm³
Cold Zone Length	100 mm
Thermal Conductivity	45 W/m·K
