Home > products > MoSi2 Heating Element > 1800C Molybdenum Disilicide Heating Elements MoSi2 Furnace Heating Element

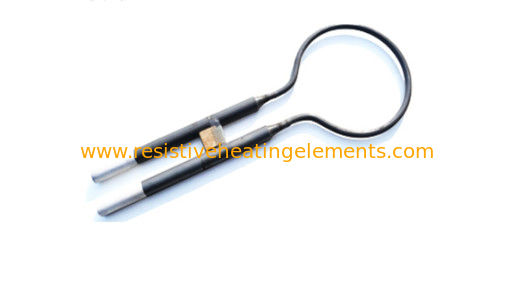

1800C Molybdenum Disilicide Heating Elements MoSi2 Furnace Heating Element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1800C Molybdenum Disilicide Heating Elements, MoSi2 Furnace Heating Element, 1800C Furnace Heating Element


Density:	7.1 G/cm³	Voltage:	Customizable
Chemical Resistance:	Excellent	Length:	Customizable
Heating Zone:	Single Or Multi-zone	Thermal Conductivity:	52 W/m·K
Power:	Customizable	Maximum Temperature:	1800°C
Surface Finish:	Polished	Diameter:	Customizable
Material:	MoSi₂	Shape:	Rod
Thermal Shock Resistance:	High	Resistance:	Low

Density:	7.1 G/cm³
Voltage:	Customizable
Chemical Resistance:	Excellent
Length:	Customizable
Heating Zone:	Single Or Multi-zone
Thermal Conductivity:	52 W/m·K
Power:	Customizable
Maximum Temperature:	1800°C
Surface Finish:	Polished
Diameter:	Customizable
Material:	MoSi₂
Shape:	Rod
Thermal Shock Resistance:	High
Resistance:	Low

Product Description

SPK MoSi₂ heating element

1. MoSi2 heating elements should not be used within the temperature range of 400 ℃ to 700 ℃. Therefore, under such adverse conditions, the elements will be oxidized at low temperature and cause damage to the elements.

2. MoSi2 heating elements are suitable for use in air and neutral atmosphere, reducing atmosphere such as hydrogen will damage the protective layer, and chlorine and sulfur vapor will directly damage the elements.

3. MoSi2 heating elements soften at high temperature (above 1500 ℃), and are hard and brittle at low temperature. In order to avoid stress during temperature change and facilitate the expansion and contraction of elements, it is better to use free vertical hanging installation method. The removal and replacement of lifting elements is also more convenient, and can be heat exchanged without waiting for the furnace to cool down.

Density	7.1 g/cm³
Chemical Resistance	Excellent
Thermal Conductivity	52 W/m·K
Maximum Temperature	1800°C
Surface Finish	Polished
Diameter	Customizable
Material	MoSi₂
Thermal Shock Resistance	High
