U Shaped Silicon Carbide Rod High Temperature 1600C Furnace Heating Element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1600c furnace heating element, u shaped silicon carbide rod, silicon carbide rod high temperature


Length:	Customizable	Thermocouple Position:	Centered
Diameter:	Customizable	Material:	Silicon Carbide
Maximum Watt Density:	40 W/cm²	Terminal Connection:	Threaded Stud
Voltage:	Customizable	Shape:	U-shaped
Heating Element Type:	Electric Resistance	Temperature Range:	Up To 1600°C
Mounting Type:	Horizontal Or Vertical	Application:	High Temperature Furnace Heating
Thermocouple Type:	K Type	Insulation Material:	High Purity Alumina

Length:	Customizable
Thermocouple Position:	Centered
Diameter:	Customizable
Material:	Silicon Carbide
Maximum Watt Density:	40 W/cm²
Terminal Connection:	Threaded Stud
Voltage:	Customizable
Shape:	U-shaped
Heating Element Type:	Electric Resistance
Temperature Range:	Up To 1600°C
Mounting Type:	Horizontal Or Vertical
Application:	High Temperature Furnace Heating
Thermocouple Type:	K Type
Insulation Material:	High Purity Alumina

Product Description

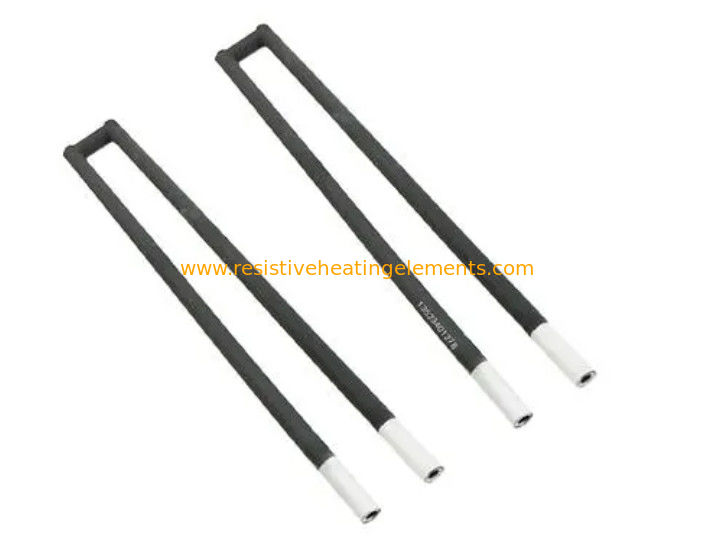

U-shaped silicon carbide rod

Features :

1. High strength and excellent shock resistance;

2. Heat source is free of noise and air pollution;

3. Anti-oxidization;

4. Anti-corrosion,

5. Long service life,

6. Little deformation,

7. Easy installation and maintenance.

8. Excellent specific rate of heat zone resistance and cold end resistance,

9. Avoiding over-temperature of cold ends to damage the furnace body.

10. Saving energy

Application	High Temperature Heating Elements
Flexural Strength	250 - 300 MPa
Thermal Shock Resistance:	Good
Chemical Resistance	Excellent
Shape	Rod
Compressive Strength	2000 - 2500 MPa
