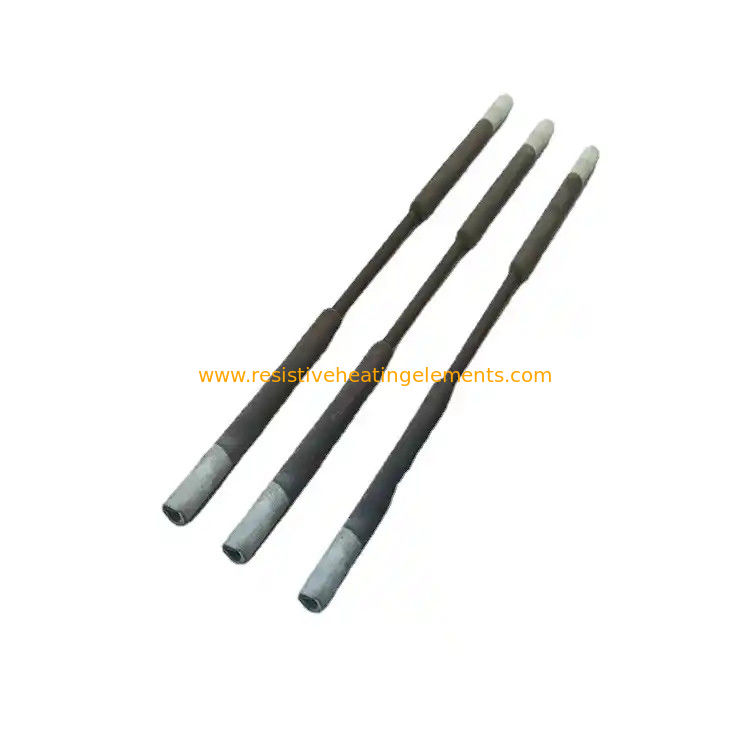

DB Dumbbell Type Silicon Carbide Heating Element For Furnaces SiC Heater
DB Dumbbell Type Silicon Carbide Heating Element For Furnaces SiC Heater

DB Dumbbell Type Silicon Carbide Heating Element For Furnaces SiC Heater

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Dumbbell Type Silicon Carbide Heating Element

,

DB Silicon Carbide Heating Element

,

Furnaces SiC heater

Diameter:
9mm
Shape:
Rod
Resistance:
1.2Ω
Maximum Temperature:
1500°C
Power:
1.5kW
Hot Zone:
150mm
Application:
Furnaces
Cold Zone:
150mm
Voltage:
220V
Material:
Silicon Carbide
Type:
Dumbbell
Operating Temperature:
1300°C
Heating Zone:
300mm
Length:
600mm
Diameter:
9mm
Shape:
Rod
Resistance:
1.2Ω
Maximum Temperature:
1500°C
Power:
1.5kW
Hot Zone:
150mm
Application:
Furnaces
Cold Zone:
150mm
Voltage:
220V
Material:
Silicon Carbide
Type:
Dumbbell
Operating Temperature:
1300°C
Heating Zone:
300mm
Length:
600mm
Product Description

DB ( Dumbbell ) Type Silicon Carbide Heating Element for Furnaces

Silicon carbide (SiC) heating element is a non-metallic rod-shaped or tubular high-temperature electric heating element. The main material is selected ultra pure green hexagonal silicon carbide, which is made into billets and silicon crystals at a high temperature of 2400 ℃. Under an oxidizing atmosphere, the operating temperature can reach 1450 ° C, and the continuous service life can reach 2000 hours.

Dumbbell shaped components with enlarged cold ends were one of the earliest designs for heating elements, initially designed to be too large to increase the cross-section of the cold end, reduce resistance, and thus lower the operating temperature of the cold end. Modern dumbbell components use advanced technology to maintain terminal cooling, as the lower resistance of the cold end material reduces its electrical resistivity during the manufacturing process. Therefore, there is no longer a need for oversized cold ends. Non dumbbell or ED type components can replace dumbbell components.

Diameter 9mm
Shape Rod
Resistance 1.2Ω
Maximum Temperature 1500°C
Power 1.5kW
Hot Zone 150mm
Application Furnaces
Cold Zone 150mm
