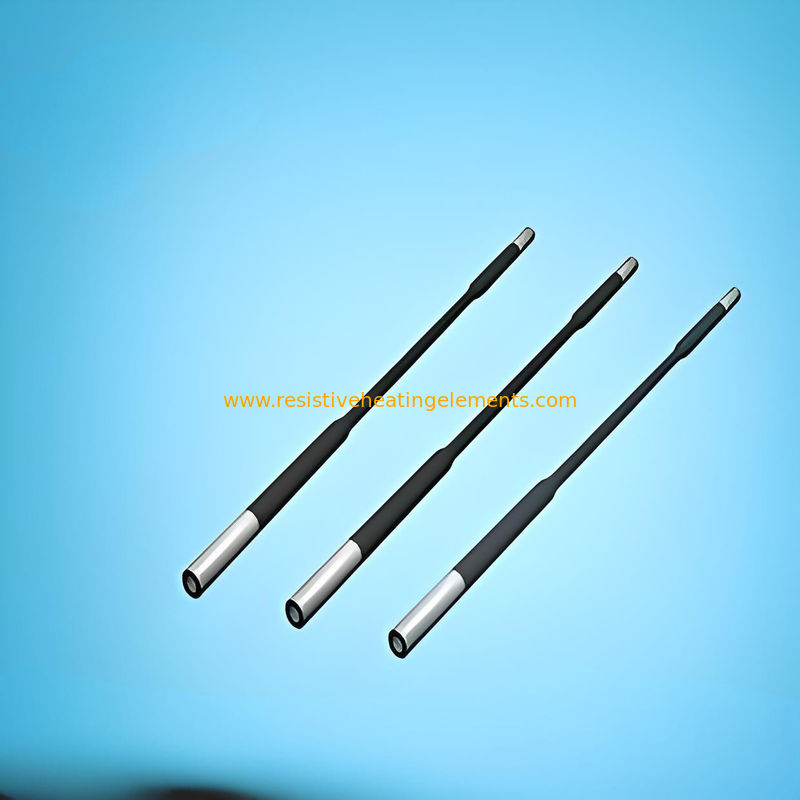

1.5kW 1300C SiC Heating Elements Dumbbell SiC Element For Furnaces

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1300C SiC Heating Elements, 1.5kW SiC Heating Elements, Dumbbell SiC Element


Diameter:	9mm	Shape:	Rod
Resistance:	1.2Ω	Maximum Temperature:	1500°C
Power:	1.5kW	Hot Zone:	150mm
Application:	Furnaces	Cold Zone:	150mm
Voltage:	220V	Material:	Silicon Carbide
Type:	Dumbbell	Operating Temperature:	1300°C
Heating Zone:	300mm	Length:	600mm

Diameter:	9mm
Shape:	Rod
Resistance:	1.2Ω
Maximum Temperature:	1500°C
Power:	1.5kW
Hot Zone:	150mm
Application:	Furnaces
Cold Zone:	150mm
Voltage:	220V
Material:	Silicon Carbide
Type:	Dumbbell
Operating Temperature:	1300°C
Heating Zone:	300mm
Length:	600mm

Product Description

DB ( Dumbbell ) Type Silicon Carbide Heating Element for Furnaces

The silicon carbide (SiC) heating element is a key component in many high-temperature applications. Its non-metallic nature gives it several advantages over traditional metallic heating elements. The use of ultra pure green hexagonal silicon carbide as the main material provides excellent thermal conductivity and resistance to high temperatures.

The manufacturing process of making billets and silicon crystals at 2400 °C results in a product with high structural integrity and stability. In an oxidizing atmosphere, the ability to operate at 1450 °C is a significant advantage, as it allows for use in a wide range of industrial processes. The long continuous service life of 2000 hours indicates its reliability and durability.
The evolution of dumbbell shaped components with enlarged cold ends is an interesting aspect of heating element design. The initial design was aimed at reducing the cold end temperature by increasing the cross-section and reducing resistance. However, modern technology has made it possible to achieve terminal cooling through other means. The reduction in electrical resistivity of the cold end material has eliminated the need for oversized cold ends. Non dumbbell or ED type components offer a more streamlined and efficient design.

From a technical perspective, these developments in heating element design reflect the continuous improvement in materials science and manufacturing processes. As technology continues to advance, we can expect further enhancements in the performance and functionality of silicon carbide heating elements.

Diameter	9mm
Shape	Rod
Resistance	1.2Ω
Maximum Temperature	1500°C
Power	1.5kW
Hot Zone	150mm
Application	Furnaces
Cold Zone	150mm
