3.5 KW SPK MoSi2 Heating Element Polished Molybdenum Disilicide

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                spk mosi2 heating element, polished molybdenum disilicide, mosi2 heating element polished


Application:	High Temperature Heating And Sintering	Density:	6.5 G/cm³
Voltage:	Up To 230 V	Operating Temperature:	Up To 1800°C
Maximum Load:	Up To 15 Kg	Heating Zone Length:	Up To 600 Mm
Thermal Conductivity:	45 W/m·K	Shape:	Rod
Size:	Customizable	Maximum Power:	Up To 3.5 KW
Thermal Expansion Coefficient:	5.5 × 10⁻⁶/K	Material:	MoSi₂
Surface Finish:	Polished	Resistance:	1.2 Ω/cm

Application:	High Temperature Heating And Sintering
Density:	6.5 G/cm³
Voltage:	Up To 230 V
Operating Temperature:	Up To 1800°C
Maximum Load:	Up To 15 Kg
Heating Zone Length:	Up To 600 Mm
Thermal Conductivity:	45 W/m·K
Shape:	Rod
Size:	Customizable
Maximum Power:	Up To 3.5 KW
Thermal Expansion Coefficient:	5.5 × 10⁻⁶/K
Material:	MoSi₂
Surface Finish:	Polished
Resistance:	1.2 Ω/cm

Product Description

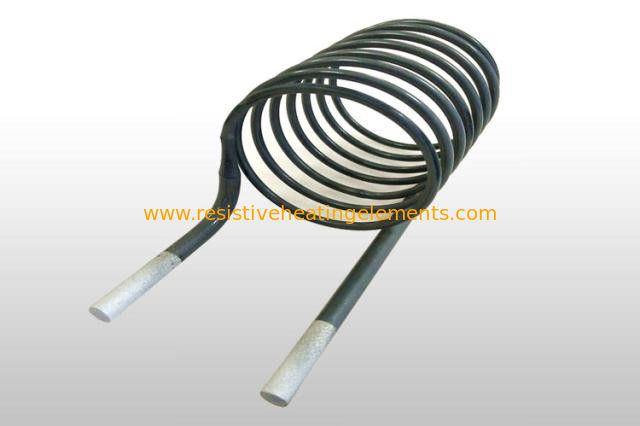

SPK MoSi₂ heating element

The main applications of irregular shaped silicon molybdenum rods include heating and sintering of special shapes. Due to its unique shape design, the irregular silicon molybdenum rod can increase heating length by bending on a limited plane, thereby improving power and temperature. This design not only increases heating efficiency, but also simplifies the wiring process.

Application	High temperature heating and sintering
Density	6.5 g/cm³
Voltage	Up to 230 V
Operating Temperature	Up to 1800°C
Maximum Load	Up to 15 kg
Heating Zone Length	Up to 600 mm
Thermal Conductivity	45 W/m·K
Size	Customizable
