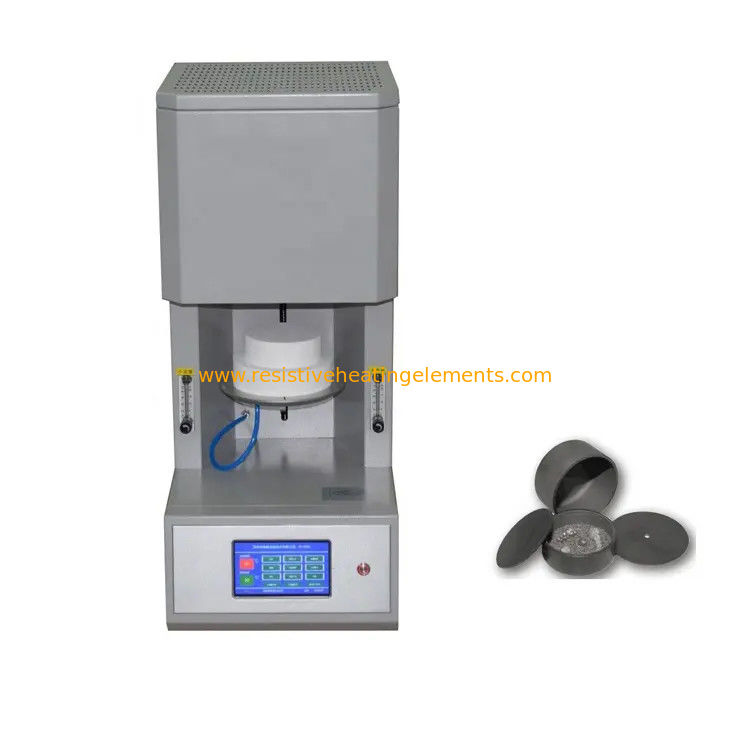

PID 5kW Dental Ceramic Furnace 1700 Degree Zirconia Sintering Furnace

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5kW Dental Ceramic Furnace, PID Dental Ceramic Furnace, 1700 Degree Zirconia Sintering Furnace


Max. Power:	5kW	Temperature Control:	PID Automatic Control
Heating Element:	Silicon Carbide (SiC)	Protection:	Over-temperature And Over-current Protection
Power Supply:	220V/380V, 50/60Hz	Safety Features:	Emergency Stop Button And Door Interlock Switch
Thermocouple:	Type K	Temperature Range:	Up To 1700°C
Optional Accessories:	Vacuum Pump, Gas Flow Meter, Crucible, Etc.	Furnace Structure:	Double Layer Steel Casing With Air Cooling System
Heating Rate:	10-20°C/min	Chamber Size:	200x200x200mm
Temperature Accuracy:	±1°C	Display:	LCD Touch Screen

Max. Power:	5kW
Temperature Control:	PID Automatic Control
Heating Element:	Silicon Carbide (SiC)
Protection:	Over-temperature And Over-current Protection
Power Supply:	220V/380V, 50/60Hz
Safety Features:	Emergency Stop Button And Door Interlock Switch
Thermocouple:	Type K
Temperature Range:	Up To 1700°C
Optional Accessories:	Vacuum Pump, Gas Flow Meter, Crucible, Etc.
Furnace Structure:	Double Layer Steel Casing With Air Cooling System
Heating Rate:	10-20°C/min
Chamber Size:	200x200x200mm
Temperature Accuracy:	±1°C
Display:	LCD Touch Screen

Product Description

High Temperature Electric Furnace

Dental furnaces (also known as dental ceramic furnaces or dental sintering furnaces) are mainly used for sintering and curing dental restorative materials. In dental clinical practice, dental stoves are widely used for making and repairing various restorations such as crowns, bridges, dentures, especially for the treatment of all ceramic and ceramic based materials.

Firstly, dental ovens can provide a high-temperature environment, allowing ceramic materials to achieve the required hardness and strength during the sintering process. By controlling the temperature and sintering time, it is possible to ensure that the material is fully bonded, reduce internal defects, and improve the wear resistance and biocompatibility of the final restoration. In addition, dental ovens can achieve specific color combinations in different materials, making the restoration components more coordinated with the patient's natural teeth and achieving better aesthetic effects.

Secondly, dental furnaces also play a crucial role in the manufacturing of metal porcelain teeth, ensuring a strong bond between the metal substrate and the porcelain layer, and preventing delamination during use. In addition, modern dental stoves often have digital control systems that can be programmed to set parameters, improving the accuracy and repeatability of operations.

Max. Power	5kW
Temperature Control	PID automatic control
Heating Element	Silicon Carbide (SiC)
Power Supply	220V/380V, 50/60Hz
Temperature Range	up to 1700°C
Heating Rate	10-20°C/min
