ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Features:	High Temperature Resistance, Corrosion Resistance, Long Service Life	Length:	300/400/500/600mm
Maximum Working Temperature:	1400°C	Heating Element:	Silicon Carbide
Thermocouple Type:	K Type	Thermocouple Position:	Center/End
Heating Zone:	Single/Double	Diameter:	3/6/9/12mm
Type:	ED Type	Resistance:	1.5-2.5Ω
Material:	Silicon Carbide	Power:	1-4kW
Voltage:	220V/380V	Shape:	Rod

Features:	High Temperature Resistance, Corrosion Resistance, Long Service Life
Length:	300/400/500/600mm
Maximum Working Temperature:	1400°C
Heating Element:	Silicon Carbide
Thermocouple Type:	K Type
Thermocouple Position:	Center/End
Heating Zone:	Single/Double
Diameter:	3/6/9/12mm
Type:	ED Type
Resistance:	1.5-2.5Ω
Material:	Silicon Carbide
Power:	1-4kW
Voltage:	220V/380V
Shape:	Rod

Product Description

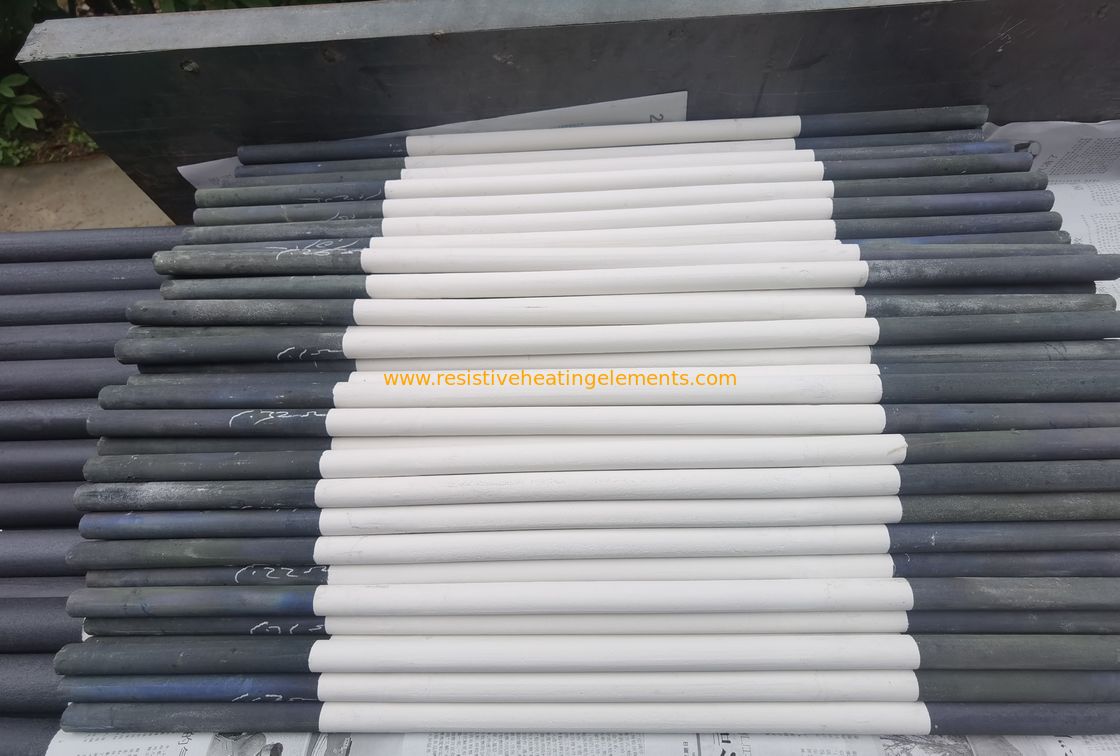

ED Type Silicon Carbide Rod

Silicon carbide rod, also known as silicon carbide heating element, is a rod-shaped non-metallic high-temperature heating element made of high-quality green silicon carbide as the main raw material. After processing by a processing system, it undergoes high-temperature silicification and recrystallization. Compared to metal heating elements, silicon carbon rods have the characteristics of high temperature resistance, oxidation resistance, corrosion resistance, long service life, small deformation, and easy installation and maintenance. Therefore, silicon carbon rods are widely used in various high-temperature electric furnaces and other electric heating equipment in industries such as magnetic materials, powder metallurgy, ceramics, glass, metallurgy, and machinery. ED type is a standard SiC heating element. ED type is a high-density self bonding silicon carbide component with various diameters and lengths to choose from.

ED Type Silicon Carbide Rod 0

Type: ED (Equal Diameter); OD: Outer Diameter; HZ: Hot Zone; CZ: Cold Zone; OL: Overall Length; Resistance; Ohms (Ω)

Examples: Type ED with 54mm-OD, 1600mm-HZ, 400mm-CZ, 2400mm-OL, Resistance 0.90Ω

Specified as;

ED, OD /Hot Zone length/Overall length/resistance

ED 54/1600/2400/0.90

Length	300/400/500/600mm
Maximum Working Temperature	1400°C
Features	High Temperature Resistance, Corrosion Resistance, Long Service Life
Heating Element	Silicon Carbide
Thermocouple Type	ED Type
