ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Density:	3.1 G/cm3	Chemical Resistance:	Excellent
Maximum Operating Temperature:	1600°C	Type:	ED Type
Flexural Strength:	400 MPa	Material:	Silicon Carbide
Diameter:	2mm-54mm	Shape:	Rod
Application:	High Temperature Furnaces, Kilns, And Heaters	Electrical Resistivity:	10^-6 Ω·m
Compressive Strength:	2000 MPa	Thermal Shock Resistance:	Good
Thermal Conductivity:	120 W/m·K	Length:	50mm-2000mm

Density:	3.1 G/cm3
Chemical Resistance:	Excellent
Maximum Operating Temperature:	1600°C
Type:	ED Type
Flexural Strength:	400 MPa
Material:	Silicon Carbide
Diameter:	2mm-54mm
Shape:	Rod
Application:	High Temperature Furnaces, Kilns, And Heaters
Electrical Resistivity:	10^-6 Ω·m
Compressive Strength:	2000 MPa
Thermal Shock Resistance:	Good
Thermal Conductivity:	120 W/m·K
Length:	50mm-2000mm

Product Description

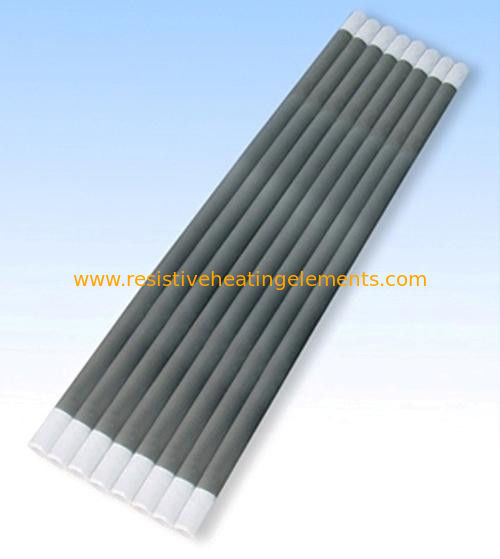

ED Type Silicon Carbide Rod

Silicon carbon rod electric heating element is a non-metallic high-temperature electric heating element made of high-quality green silicon carbide as the main raw material, processed into blanks, high-temperature silicified, and recrystallized into a cylindrical shape. Compared with metal electric heating elements, this component has the characteristics of high operating temperature (up to 1500 ℃), oxidation resistance, corrosion resistance, long service life, minimal deformation, and easy installation and maintenance. Silicon carbon rod products include thick end and equal diameter silicon carbon rods, with various specifications and models including straight rods, U-shaped rods, three-phase rods, gun shaped rods, five section rods, groove shaped rods, single threaded rods, double threaded rods, etc. The diameter range of silicon carbon rods is Φ 8- Φ 54mm.

Density	3.1 g/cm3
Chemical Resistance	Excellent
Maximum Operating Temperature	1600°C
Type	ED Type
Flexural Strength	400 MPa
Material	Silicon Carbide
Diameter	2mm-54mm
Shape	Rod
Application	High Temperature Furnaces, Kilns, and Heaters
Electrical Resistivity	10^-6 Ω·m
