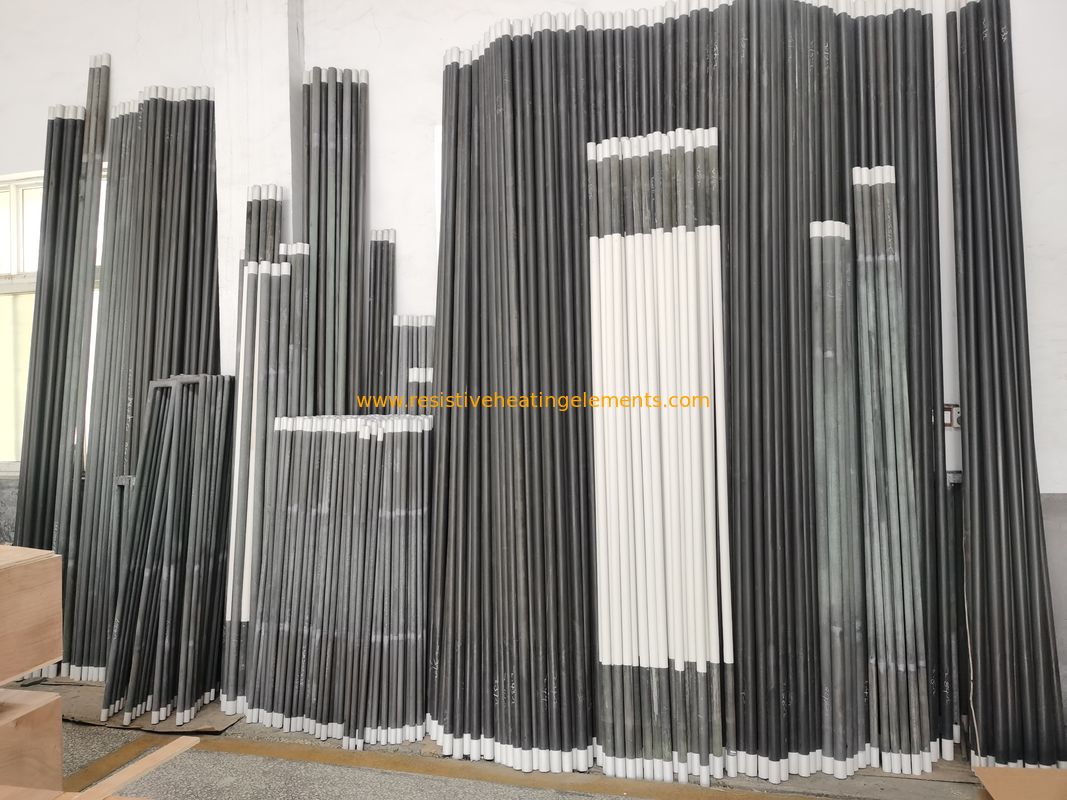

ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Application:	Industrial Heating	Power:	100W-1000W
Max Temperature:	1550℃	Thermal Conductivity:	Low
Resistance:	High	Type:	ED Type
Heating Zone:	Single/Double	Warranty:	1 Year
Diameter:	2mm-50mm	Material:	Silicon Carbide
Shape:	Rod	Voltage:	220V-600V
Length:	100mm-2000mm

Application:	Industrial Heating
Power:	100W-1000W
Max Temperature:	1550℃
Thermal Conductivity:	Low
Resistance:	High
Type:	ED Type
Heating Zone:	Single/Double
Warranty:	1 Year
Diameter:	2mm-50mm
Material:	Silicon Carbide
Shape:	Rod
Voltage:	220V-600V
Length:	100mm-2000mm

Product Description

ED Type Silicon Carbide Rod

The equal-diameter silicon carbide rods (ED type) are substitute products for the thick-end type silicon carbide rods. Their advantages are as follows:

Small End Resistance:
The current is evenly distributed on the rod body, reducing the aggregation of current at the ends, decreasing energy loss, improving the efficiency of converting electrical energy into thermal energy, and achieving remarkable energy-saving effects.
It also reduces the risk of overheating at the ends, thus prolonging the service life.

Long Service Life:
High-quality silicon carbide materials are used, which have high hardness, excellent high-temperature resistance. The melting point can reach above 2000°C, and they can maintain good mechanical strength and chemical stability in a high-temperature environment.
The equal-diameter structure design makes the thermal expansion and contraction relatively uniform, reducing the cracks and damages caused by the concentration of thermal stress.

They are commonly used in industries such as rare earth fluorescent powder, electronics, magnetic materials, powder metallurgy, and precision casting as heating elements for pusher furnaces, mesh belt furnaces, trolley furnaces, and box furnaces.

Technical parameters:

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
