ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Diameter:	2mm	Heating Zone:	Single
Insulation Material:	Mullite	Length:	300mm
Maximum Temperature:	1600°C	Application:	High Temperature Heating
Type:	Rod	Shape:	Straight
Material:	Silicon Carbide	Resistance:	10Ω
Wattage:	100W	Connection Type:	Threaded

Diameter:	2mm
Heating Zone:	Single
Insulation Material:	Mullite
Length:	300mm
Maximum Temperature:	1600°C
Application:	High Temperature Heating
Type:	Rod
Shape:	Straight
Material:	Silicon Carbide
Resistance:	10Ω
Wattage:	100W
Connection Type:	Threaded

Product Description

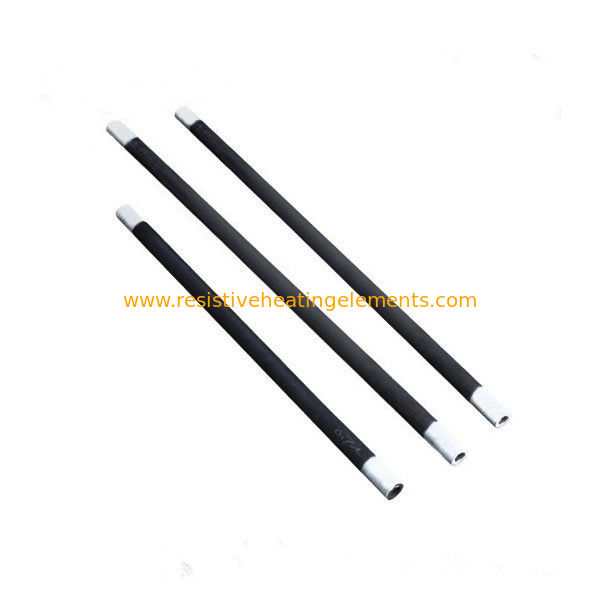

ED Type Silicon Carbide Rod
The equal-diameter silicon carbide rods (ED type) are a kind of high-performance heating elements. They adopt an equal-diameter design, which makes the thermal expansion and contraction more uniform, reduces the risks of cracks and damages caused by the concentration of thermal stress, and thus prolongs the service life. The main material of them is silicon carbide, which has extremely high hardness and excellent high-temperature resistance. The melting point can reach above 2,000 °C, and it can maintain good mechanical strength and chemical stability in a high-temperature environment. The equal-diameter silicon carbide rods (ED type) have small end resistances, and the current is evenly distributed on the rod body. This not only improves the efficiency of converting electrical energy into thermal energy, achieving remarkable energy-saving effects, but also reduces the risk of overheating and damage at the ends. They heat evenly and can provide a stable high-temperature environment for pusher furnaces, mesh belt furnaces, trolley furnaces, box furnaces and other equipment in industries such as rare earth fluorescent powder, electronics, magnetic materials, powder metallurgy, and precision casting, ensuring the consistency of product quality.

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
