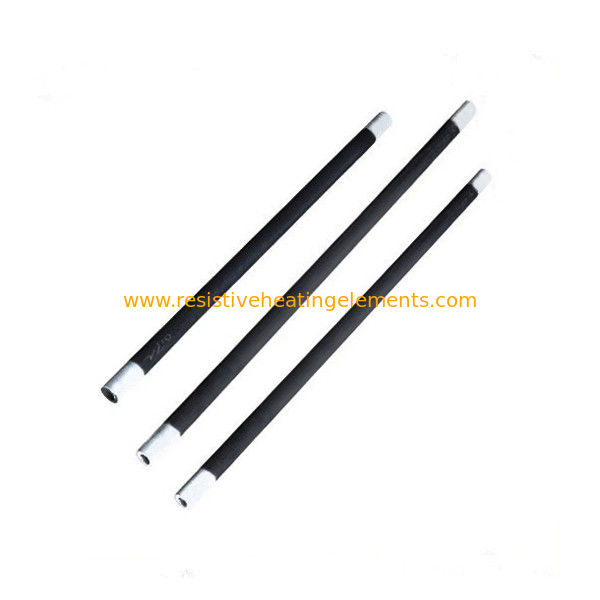

ED Type Silicon Carbide Rod

Description: The ED type silicon carbide rod is mainly made of silicon carbide and features an equal-diameter structure, that is, the diameters of the heating part and the cold end are basically the same. The heating part is formed by pressing and sintering high-purity silicon carbide particles through special processes, and a good conductive network is formed inside.

Working Principle: When an electric current passes through the silicon carbide rod, due to its own resistance characteristics, electrical energy will be converted into thermal energy, thus making the silicon carbide rod heat up. When heated in the air, the surface temperature of the heating part of the element can reach around 1400℃ - 1500℃, and a dense silicon dioxide film will be formed on the surface. This film has an antioxidant effect and can protect the silicon carbide structure inside the silicon carbide rod to a certain extent, thus prolonging its service life.

Advantages:

Long Service Life: Due to the high-temperature resistance of its material and the antioxidant film formed on the surface, the ED type silicon carbide rod can work stably in a high-temperature environment for a long time. Generally speaking, its service life can reach thousands of hours or even longer, reducing the frequency of replacing heating elements and lowering the maintenance cost of the equipment.
Energy-saving and High-efficiency: The equal-diameter structure makes the heating efficiency of the silicon carbide rod higher, enabling it to convert electrical energy into thermal energy more effectively. Under the same power input, the ED type silicon carbide rod can generate more heat, thus improving the energy utilization rate of the heating equipment and saving energy costs

Density	3.1 g/cm3
Chemical Resistance	Excellent
Maximum Operating Temperature	1600°C
Type	ED Type
Flexural Strength	400 MPa
Material	Silicon Carbide
Diameter	2mm-54mm
Shape	Rod
Application	High Temperature Furnaces, Kilns, and Heaters
Electrical Resistivity	10^-6 Ω·m

Density:	3.1 G/cm3	Chemical Resistance:	Excellent
Maximum Operating Temperature:	1600°C	Type:	ED Type
Flexural Strength:	400 MPa	Material:	Silicon Carbide
Diameter:	2mm-54mm	Shape:	Rod
Application:	High Temperature Furnaces, Kilns, And Heaters	Electrical Resistivity:	10^-6 Ω·m
Compressive Strength:	2000 MPa	Thermal Shock Resistance:	Good
Thermal Conductivity:	120 W/m·K	Length:	50mm-2000mm

Density:	3.1 G/cm3
Chemical Resistance:	Excellent
Maximum Operating Temperature:	1600°C
Type:	ED Type
Flexural Strength:	400 MPa
Material:	Silicon Carbide
Diameter:	2mm-54mm
Shape:	Rod
Application:	High Temperature Furnaces, Kilns, And Heaters
Electrical Resistivity:	10^-6 Ω·m
Compressive Strength:	2000 MPa
Thermal Shock Resistance:	Good
Thermal Conductivity:	120 W/m·K
Length:	50mm-2000mm
