ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Voltage:	220V	Diameter:	2mm
Heating Zone:	Single	Insulation Material:	Mullite
Length:	300mm	Maximum Temperature:	1600°C
Application:	High Temperature Heating	Type:	Rod
Shape:	Straight	Material:	Silicon Carbide
Resistance:	10Ω	Wattage:	100W
Connection Type:	Threaded

Voltage:	220V
Diameter:	2mm
Heating Zone:	Single
Insulation Material:	Mullite
Length:	300mm
Maximum Temperature:	1600°C
Application:	High Temperature Heating
Type:	Rod
Shape:	Straight
Material:	Silicon Carbide
Resistance:	10Ω
Wattage:	100W
Connection Type:	Threaded

Product Description

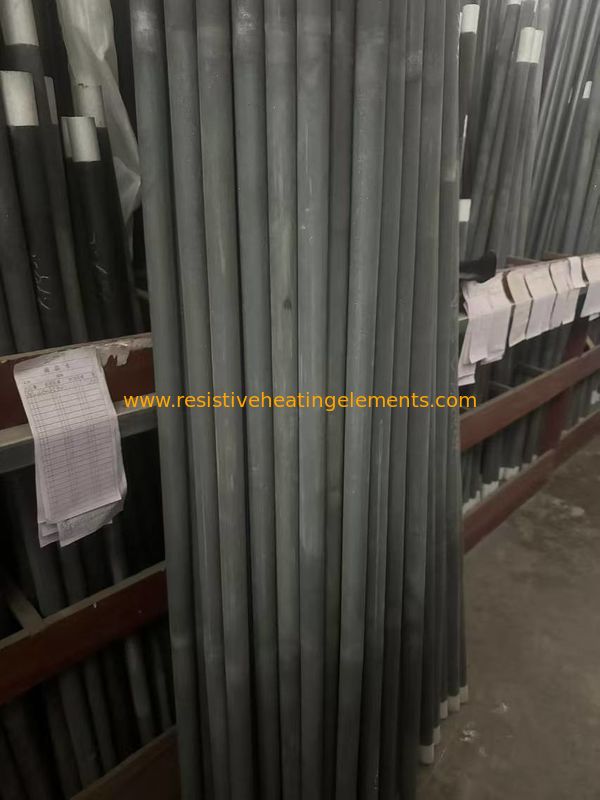

ED Type Silicon Carbide Rod

ED Type Silicon Carbide Rod
Silicon carbide rods (ED type) are substitute products for thick-end silicon carbide rods.
Advantages and Characteristics:

Low End Resistance: It enables the electric current to be distributed more evenly on the rod body, reducing local overheating and prolonging the service life.
Long Service Life: Thanks to its own properties, it can work stably for a long period of time.
Energy-saving: Under the same power input, it can convert electrical energy into thermal energy more efficiently, thus achieving energy saving.

Application Industries and Equipment:

Rare Earth Fluorescent Powder Industry: Used as heating elements for pusher plate furnaces, mesh belt furnaces, etc.
Electronics Industry: Applied to relevant heating equipment in processes such as electronic component manufacturing.
Magnetic Materials Industry: Adapted to the temperature requirements of magnetic material production and used as heating elements.
Powder Metallurgy Industry: Undertakes the heating task in the production process.
Precision Casting Industry: Provides the necessary heating conditions for the casting process.

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
