1600C High Temperature Heating Elements 2500MPa Furnace Element SiC

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1600c high temperature heating elements, 1600c element sic, high temperature element sic


Diameter:	3mm-54mm	Electrical Resistivity:	10^-4 Ω·cm
Shape:	Straight	Thermal Conductivity:	120W/m·K
Compressive Strength:	2500MPa	Material:	Silicon Carbide
Length:	100mm-2000mm	Flexural Strength:	400MPa
Surface Finish:	Ground And Polished	Density:	3.2g/cm³
Chemical Resistance:	Excellent	Type:	Rod
Maximum Operating Temperature:	1600°C

Diameter:	3mm-54mm
Electrical Resistivity:	10^-4 Ω·cm
Shape:	Straight
Thermal Conductivity:	120W/m·K
Compressive Strength:	2500MPa
Material:	Silicon Carbide
Length:	100mm-2000mm
Flexural Strength:	400MPa
Surface Finish:	Ground And Polished
Density:	3.2g/cm³
Chemical Resistance:	Excellent
Type:	Rod
Maximum Operating Temperature:	1600°C

Product Description

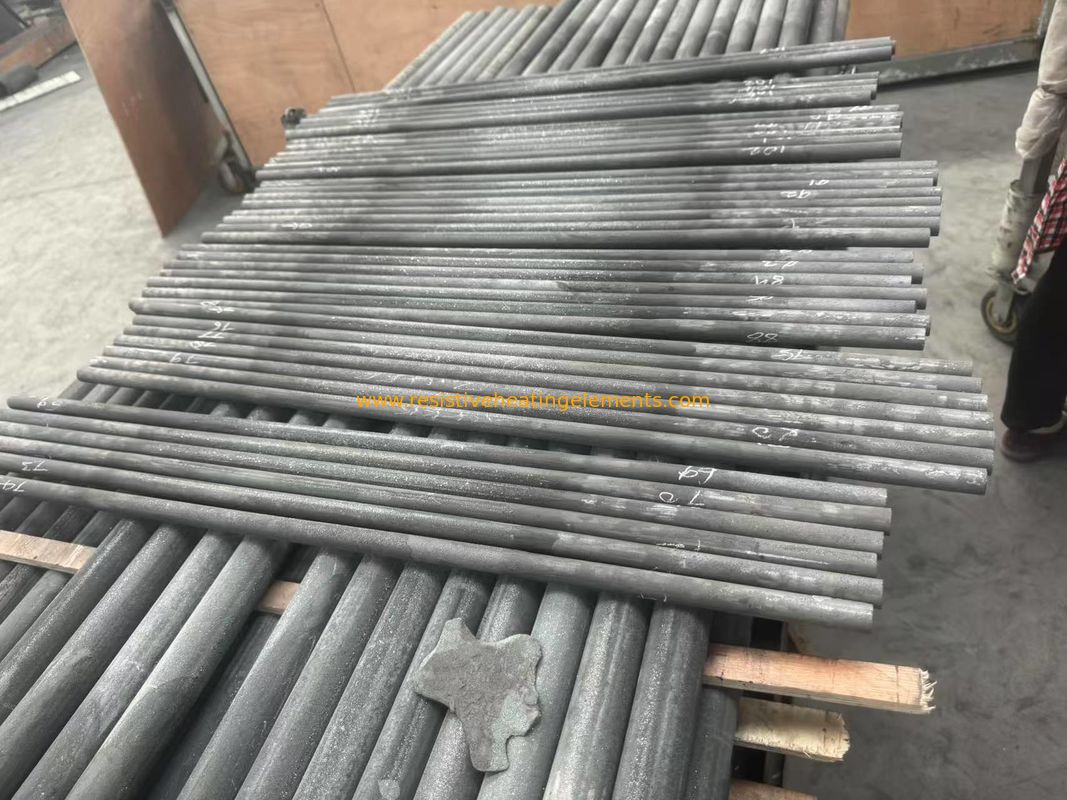

ED Type Silicon Carbide Rod

The production process of equal diameter silicon carbide rods generally includes the following steps:

1. Choose the appropriate silicon carbon powder: Based on specific applications and requirements, select the appropriate proportion of silicon carbon powder The silicon carbon rod produced has the required mechanical properties and high temperature resistance.

2. Mixing: Mix the selected silicon carbon powder together to The composition of silicon carbide rods is uniform.

3. Pressing: Place the mixed silicon carbon powder into a mold and use mechanical force or hydraulic pressure to press the powder into a blank.

4. Sintering: Place the pressed silicon carbon billet into a high-temperature furnace for sintering. During the sintering process, silicon and carbon undergo a bonding reaction to form hardened silicon carbon materials.

5. Precision machining: After sintering, the diameter of the silicon carbide rod may change, and precision machining is required to keep the diameter of the silicon carbide rod consistent.

Application	High Temperature Heating Elements
Flexural Strength	250 - 300 MPa
Thermal Shock Resistance:	Good
Chemical Resistance	Excellent
Shape	Rod
Compressive Strength	2000 - 2500 MPa
