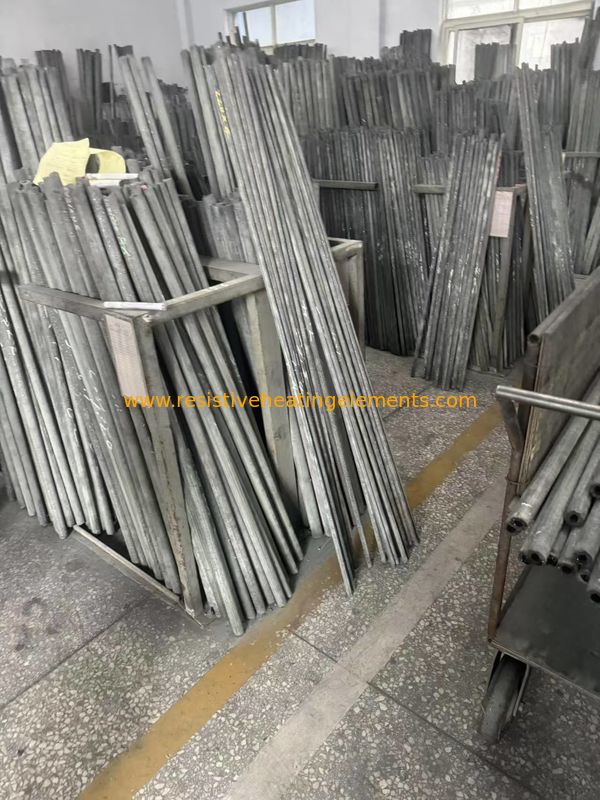

ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Features:	High Temperature Stability	Heating Element:	Silicon Carbide
Thermal Conductivity:	High	Resistance:	High
Application:	Industrial Heating	Corrosion Resistance:	High
Maximum Temperature:	1400°C	Shape:	Rod
Type:	Silicon Carbide Rod	Material:	Silicon Carbide
Chemical Inertness:	High

Features:	High Temperature Stability
Heating Element:	Silicon Carbide
Thermal Conductivity:	High
Resistance:	High
Application:	Industrial Heating
Corrosion Resistance:	High
Maximum Temperature:	1400°C
Shape:	Rod
Type:	Silicon Carbide Rod
Material:	Silicon Carbide
Chemical Inertness:	High

Product Description

ED Type Silicon Carbide Rod

As an element that exhibits excellent performance in the field of industrial heating, the ED-type silicon carbide rod is worthy of in-depth analysis regarding its unique features.

In terms of material composition, silicon carbide, being the main component, endows the silicon carbide rod with outstanding high-temperature resistance. The equal-diameter structural design ensures that the diameters of the heating part and the cold end remain highly consistent, and this design feature holds significant importance in practical applications. The heating part is formed by pressing and sintering high-purity silicon carbide particles through special processes. This process not only guarantees the compactness of the structure but also constructs a good conductive network inside.

In terms of the working principle, when an electric current passes through the silicon carbide rod, its own resistance characteristics become crucial. The existence of resistance enables electrical energy to be efficiently converted into thermal energy, thus realizing the heating function. When heated in the air, the surface of the heating part of the element can reach a high temperature of around 1400℃ - 1500℃. Under this high-temperature condition, a dense silicon dioxide film will be formed on the surface of the silicon carbide rod. The formation of this film is due to the reaction between silicon carbide and the oxygen in the air at high temperatures. However, its unique antioxidant effect can effectively protect the internal silicon carbide structure of the silicon carbide rod from further oxidation, thereby prolonging the service life of the silicon carbide rod.

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
