ED Type Silicon Carbide Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ed type silicon carbide rod, ed silicon carbide rod, ed silicon carbide element


Voltage:	220V	Diameter:	2mm
Heating Zone:	Single	Insulation Material:	Mullite
Length:	300mm	Maximum Temperature:	1600°C
Application:	High Temperature Heating	Type:	Rod
Shape:	Straight	Material:	Silicon Carbide
Resistance:	10Ω	Wattage:	100W
Connection Type:	Threaded

Voltage:	220V
Diameter:	2mm
Heating Zone:	Single
Insulation Material:	Mullite
Length:	300mm
Maximum Temperature:	1600°C
Application:	High Temperature Heating
Type:	Rod
Shape:	Straight
Material:	Silicon Carbide
Resistance:	10Ω
Wattage:	100W
Connection Type:	Threaded

Product Description

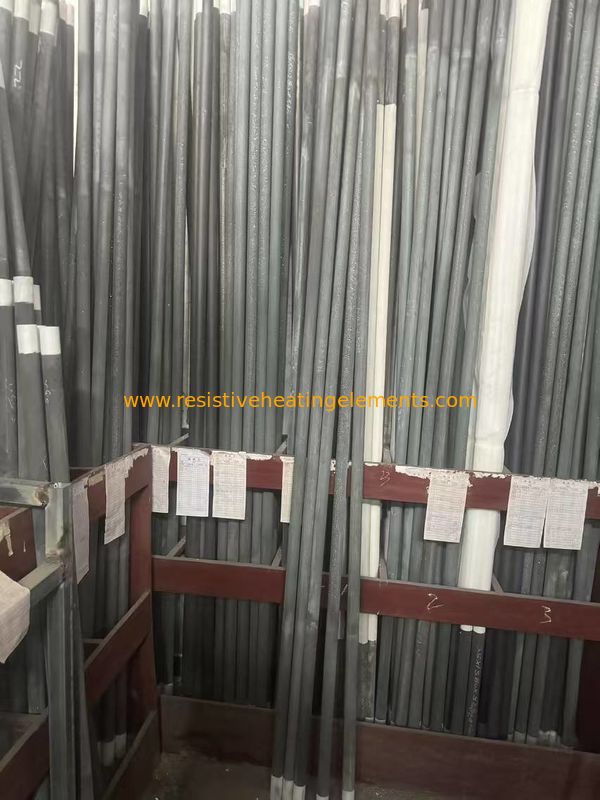

ED Type Silicon Carbide Rod
Compared with traditional heating elements, the ED-type silicon carbide rods possess numerous remarkable advantages.
Firstly, in terms of materials, the ED-type silicon carbide rods are mainly made of silicon carbide, while other elements may use different materials. This enables the silicon carbide rods to have a superior performance in high-temperature resistance. Its equal-diameter structural characteristic is also unique. The diameters of the heating part and the cold end are the same, ensuring the uniformity of heat distribution. In contrast, some traditional heating elements may have the problem of uneven heating.
The heating part of the silicon carbide rod is formed by pressing and sintering high-purity silicon carbide particles through special processes, and the internal conductive network is more stable and efficient. In comparison, the heating mechanisms of some traditional elements may not be stable enough.
In terms of the working principle, when an electric current passes through, the ED-type silicon carbide rods rely on their own resistance characteristics to convert electrical energy into thermal energy, with a remarkable heating effect. When heated in the air, they can reach a high temperature of around 1400℃ - 1500℃ and form an antioxidant silicon dioxide film, thus prolonging the service life. However, other elements may be prone to damage at high temperatures or lack an effective antioxidant protection mechanism.

	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
