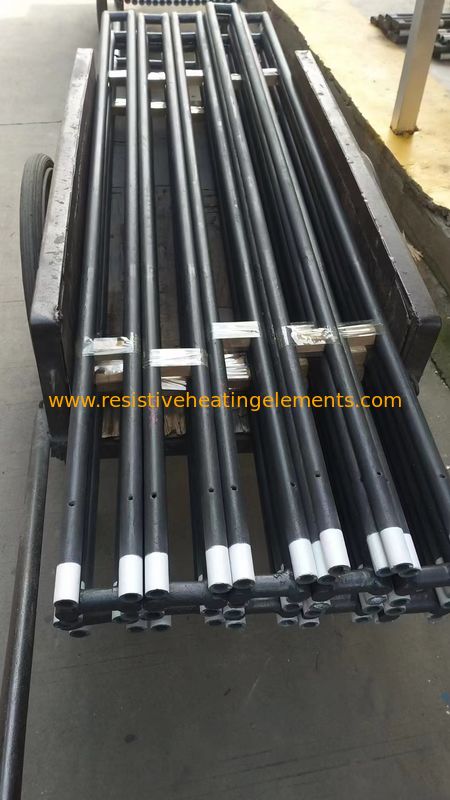

U-shaped silicon carbide rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                customizable silicon carbide rod, customizable silicon carbide element


Material:	Silicon Carbide	Power:	Customizable
Mounting Type:	Horizontal Or Vertical	Heating Element Type:	Silicon Carbide
Thermocouple Position:	Customizable	Diameter:	Customizable
Heating Zone:	Single Or Multiple	Maximum Temperature:	Customizable
Terminal Connection:	Threaded Or Flanged	Shape:	U-shaped
Length:	Customizable	Thermocouple Type:	K Or J Type
Insulation Material:	Mullite Or Alumina	Voltage:	Customizable

Material:	Silicon Carbide
Power:	Customizable
Mounting Type:	Horizontal Or Vertical
Heating Element Type:	Silicon Carbide
Thermocouple Position:	Customizable
Diameter:	Customizable
Heating Zone:	Single Or Multiple
Maximum Temperature:	Customizable
Terminal Connection:	Threaded Or Flanged
Shape:	U-shaped
Length:	Customizable
Thermocouple Type:	K Or J Type
Insulation Material:	Mullite Or Alumina
Voltage:	Customizable

Product Description

U-shaped silicon carbide rod

The U-shaped silicon heating element is made by taking two carefully matched SiC rods and welding a thick silicon carbide bridge. The U-shaped component connects the two ends from one side of the furnace. The tail end of the cold end is made of aluminum metal, providing a low resistance contact surface for the aluminum connecting strip and fixture.

Features:

1. High strength and excellent shock resistance;

2. Heat source is free of noise and air pollution;

3. Anti-oxidization;

4. Anti-corrosion,

5. Long service life,

6. Little deformation,

7. Easy installation and maintenance.

8. Excellent specific rate of heat zone resistance and cold end resistance,

9. Avoiding over-temperature of cold ends to damage the furnace body.

10. Saving energy

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
