High Temp Silicon Carbide Electric Furnace Element 1500 Degree Element SiC

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Silicon Carbide Electric Furnace Element, High Temp Silicon Carbide Element, 1500 Degree Element SiC


Thermocouple Type:	K/J/E	Application:	High Temperature Heating
Terminal Type:	Screw/Threaded	Maximum Temperature:	Customizable
Diameter:	Customizable	Shape:	U-shaped
Length:	Customizable	Material:	Silicon Carbide
Voltage:	Customizable	Watt Density:	Customizable
Power:	Customizable	Heating Zone:	Single/Double
Resistance:	Customizable	Insulation Material:	Mullite/Alumina

Thermocouple Type:	K/J/E
Application:	High Temperature Heating
Terminal Type:	Screw/Threaded
Maximum Temperature:	Customizable
Diameter:	Customizable
Shape:	U-shaped
Length:	Customizable
Material:	Silicon Carbide
Voltage:	Customizable
Watt Density:	Customizable
Power:	Customizable
Heating Zone:	Single/Double
Resistance:	Customizable
Insulation Material:	Mullite/Alumina

Product Description

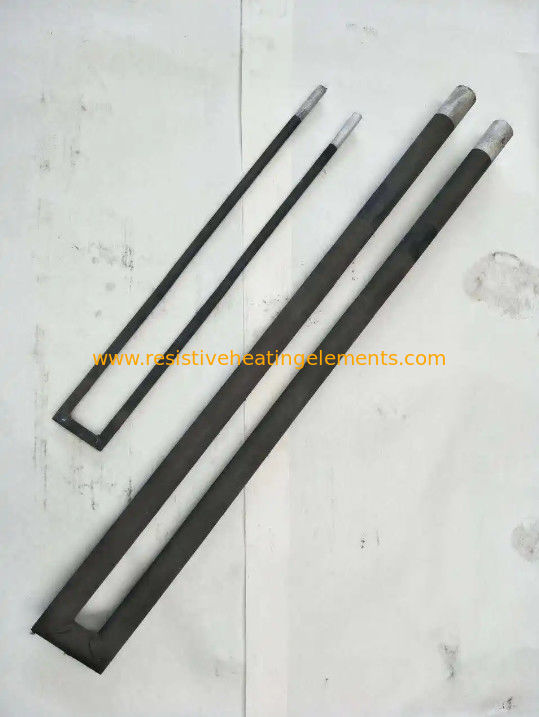

U-shaped silicon carbide rod

Due to the U-shaped silicon heating element consisting of two ED silicon heating elements sharing a cold end, it can be connected through the power cord at one end of the furnace. The surface temperature of the heating part is 1500 ℃. Suitable for kilns with high furnace temperature and high temperature uniformity. Its characteristics are energy-saving and long service life.
In addition, compared to the U-shaped design, the number of heating element holes on the furnace can be reduced, allowing for the construction of furnaces with energy-saving structures. These components are widely used as high-temperature heat sources for electric furnaces and for firing ceramic capacitors, ferrites, and other electronic components.

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
