380V Silicon Carbide Elements Industrial Heating SiC Rods Corrosion Resistance

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                380V Silicon Carbide Elements, Industrial Heating SiC Rods, Corrosion Resistance SiC Rods


Durability:	Long-lasting	Voltage:	220V/380V
Thermal Conductivity:	High	Chemical Inertness:	Excellent
Maximum Operating Temperature:	1600°C	Length:	Customizable
Application:	Industrial Heating	Material:	Silicon Carbide
Resistance:	High	Corrosion Resistance:	Excellent
Shape:	U-shaped	Thermal Shock Resistance:	Excellent
Diameter:	Customizable	Power:	Customizable

Durability:	Long-lasting
Voltage:	220V/380V
Thermal Conductivity:	High
Chemical Inertness:	Excellent
Maximum Operating Temperature:	1600°C
Length:	Customizable
Application:	Industrial Heating
Material:	Silicon Carbide
Resistance:	High
Corrosion Resistance:	Excellent
Shape:	U-shaped
Thermal Shock Resistance:	Excellent
Diameter:	Customizable
Power:	Customizable

Product Description

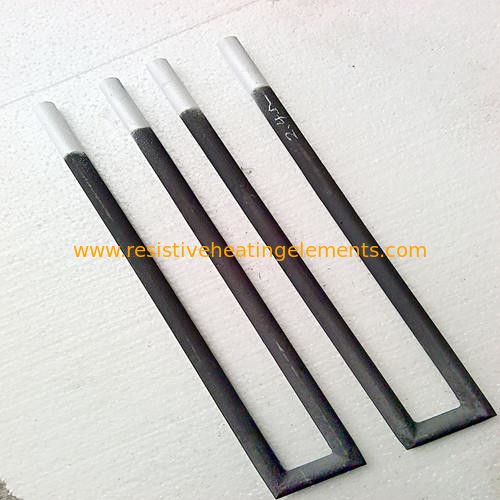

U-shaped silicon carbide rod

Material and Structure
The internal core rod of U-shaped silicon carbide rod is made of high-strength steel wire or high-performance ceramic fiber, which has good high temperature resistance and bending strength. The external coating material is composed of aluminum silicate fibers and carbon fibers, which have excellent thermal conductivity and high temperature resistance. Through special production processes, the core rod of U-shaped silicon carbide rod is tightly bonded with the coating material, which is not easy to fall off and can ensure its long-term stable working performance.

Characteristics and Applications
U-shaped silicon carbide rods have the following characteristics:

High temperature strength: It can maintain high strength at high temperatures and has good bending strength and tensile strength.
Thermal conductivity: It can quickly transfer heat to the surrounding medium, improving heating efficiency.
Corrosion resistance: It is not easily oxidized at high temperatures and can adapt to environments with various chemical media.
Energy saving and environmental protection: The electric thermal conversion efficiency is high, which can effectively reduce energy consumption and environmental pollution.
Long lifespan: With a long service life of over 8000 hours, it has good economic viability.

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
