U-shaped silicon carbide rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000pcs

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                customizable silicon carbide rod, customizable silicon carbide element, high temperature silicon carbide rod


Length:	Customizable	Thermocouple Position:	Centered
Diameter:	Customizable	Material:	Silicon Carbide
Maximum Watt Density:	40 W/cm²	Terminal Connection:	Threaded Stud
Voltage:	Customizable	Shape:	U-shaped
Heating Element Type:	Electric Resistance	Temperature Range:	Up To 1600°C
Mounting Type:	Horizontal Or Vertical	Application:	High Temperature Furnace Heating
Thermocouple Type:	K Type	Insulation Material:	High Purity Alumina

Length:	Customizable
Thermocouple Position:	Centered
Diameter:	Customizable
Material:	Silicon Carbide
Maximum Watt Density:	40 W/cm²
Terminal Connection:	Threaded Stud
Voltage:	Customizable
Shape:	U-shaped
Heating Element Type:	Electric Resistance
Temperature Range:	Up To 1600°C
Mounting Type:	Horizontal Or Vertical
Application:	High Temperature Furnace Heating
Thermocouple Type:	K Type
Insulation Material:	High Purity Alumina

Product Description

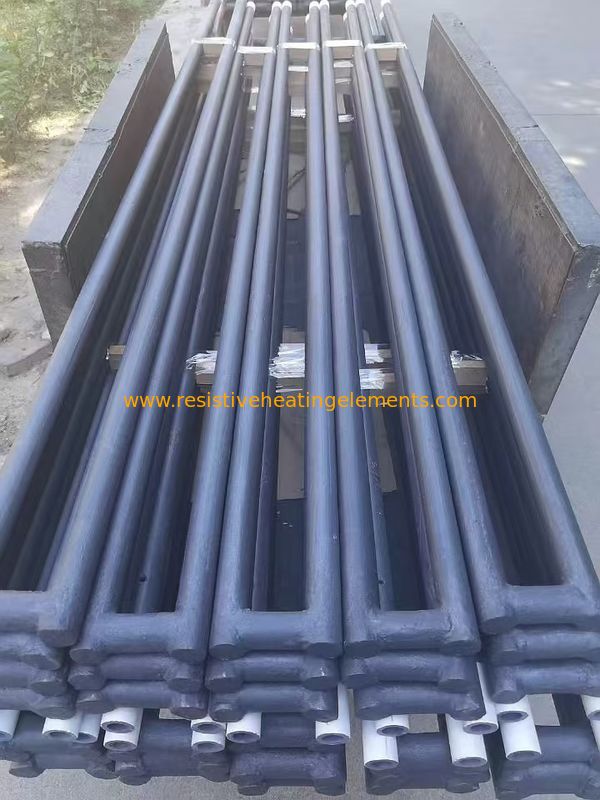

U-shaped silicon carbide rod
The U-shaped silicon carbide heating element is a non-metallic high-temperature electrothermal element mainly made of silicon carbide. It has the advantages of high temperature resistance, oxidation resistance, corrosion resistance, fast heating speed and long service life, and is widely used in various high-temperature electric furnaces.
Its product features are as follows:
Excellent high temperature resistance: The silicon carbide heating element can work stably for a long time under high temperature conditions, and the maximum operating temperature can reach about 1600℃. The U-shaped design enables it to provide a relatively large heating area within a limited space, thus improving the heating efficiency.
Strong oxidation resistance: Under high temperature, a dense layer of silicon dioxide protective film will be formed on the surface of the silicon carbide heating element, which can prevent further erosion by oxygen and thus extend its service life.
Fast heating speed: Since the resistance value of the silicon carbide heating element gradually increases with the increase of temperature, it can heat up rapidly after being energized, saving heating time.
Convenient installation: The shape design of the U-shaped silicon carbide heating element makes it easy to be installed in various electric furnaces and can be flexibly arranged according to actual needs.
Diverse size specifications: There are various size specifications of U-shaped silicon carbide heating elements available for selection to meet the heating requirements of different electric furnaces.

Application	High Temperature Heating Elements
Flexural Strength	250 - 300 MPa
Thermal Shock Resistance:	Good
Chemical Resistance	Excellent
Shape	Rod
Compressive Strength	2000 - 2500 MPa
