1000W-5000W Molybdenum Heating Element 1800 Degree MoSi2 Heater

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1000W Molybdenum Heating Element, 5000W Molybdenum Heating Element, 1800 Degree MoSi2 Heater


Longevity:	Up To 2000 Hours	Wattage:	1000W-5000W
Corrosion Resistance:	Good	Material:	Mosi2
Size:	Customized	Max Temperature:	1800°C
Resistance:	1.2-2.5Ω	Operating Atmosphere:	Vacuum Or Inert Gas
Voltage:	220V-480V	Application:	High Temperature Industrial Furnaces
Thermal Shock Resistance:	Excellent	Heating Zone:	Single Or Multi-zone
Shape:	U Type

Longevity:	Up To 2000 Hours
Wattage:	1000W-5000W
Corrosion Resistance:	Good
Material:	Mosi2
Size:	Customized
Max Temperature:	1800°C
Resistance:	1.2-2.5Ω
Operating Atmosphere:	Vacuum Or Inert Gas
Voltage:	220V-480V
Application:	High Temperature Industrial Furnaces
Thermal Shock Resistance:	Excellent
Heating Zone:	Single Or Multi-zone
Shape:	U Type

Product Description

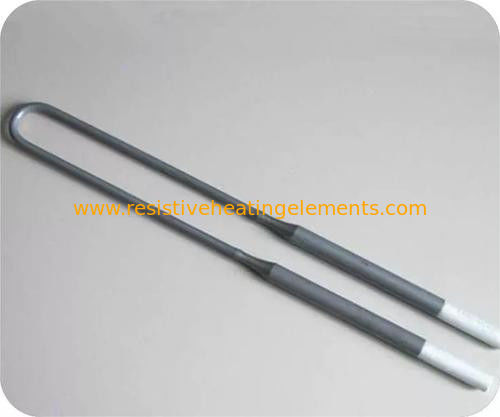

U type Mosi2 Heating elemet

1. Silicon molybdenum rods have high brittleness at room temperature and plasticity at high temperatures, so the installation method of U-shaped rods is vertical suspension installation. The purpose of this installation is to avoid applying mechanical stress to the heating end of the component, otherwise it may cause component breakage. If horizontal installation is required, please use high-temperature refractory materials to support and place the silicon molybdenum rod horizontally.

2. To avoid local overheating, the conical part at the bottom of the component must extend into the furnace.

3. To avoid stress transmission to the component, the length of the wire should be slightly greater than the straight-line distance between the component and the busbar.

4. The screws on the clamp of the silicon molybdenum rod cannot be tightened too tightly at once. When the component reaches high temperature, tighten it again because the component has a certain plasticity and is not easy to break at this time.

5. The temperature of the general chuck should not exceed 200 ℃. The contact voltage between the clamp wire and the component should be less than 0.1V.

6. To avoid the transfer of radiant heat to the chuck, the distance between the lower end of the chuck and the top of the plug brick should not be less than 50mm.

7. To avoid damage, components with a diameter of Φ 6/12mm cannot use a current of 170A for a long time, and components with a diameter of Φ 9/18mm cannot use a current of 300A for a long time.

Application	High temperature furnaces and kilns
Length	Customizable
Heating Zone	Single or Multi-zone
Material	Mosi2
Thermal Conductivity	18-20 W/mK
Max Temperature	1800°C
