1KW-10KW MoSi2 Heating Element Molybdenum Disilicide Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                10kw mosi2 heating element, 1kw mosi2 heating element, 1kw molybdenum disilicide heating elements


Corrosion Resistance:	Excellent	High Temperature Strength:	High
Voltage:	220V-480V	Power:	1-10KW
Usage:	Heating Element	Maximum Temperature:	1800℃
Resistance:	1.2-2.8Ω	Thermal Shock Resistance:	Good
Shape:	U Type	Material:	Mosi2
Application:	Industrial Furnace, Laboratory Furnace, Heat Treatment Equipment	Length:	100-3000mm
Diameter:	3-12mm	Surface Load:	4-6W/cm²

Corrosion Resistance:	Excellent
High Temperature Strength:	High
Voltage:	220V-480V
Power:	1-10KW
Usage:	Heating Element
Maximum Temperature:	1800℃
Resistance:	1.2-2.8Ω
Thermal Shock Resistance:	Good
Shape:	U Type
Material:	Mosi2
Application:	Industrial Furnace, Laboratory Furnace, Heat Treatment Equipment
Length:	100-3000mm
Diameter:	3-12mm
Surface Load:	4-6W/cm²

Product Description

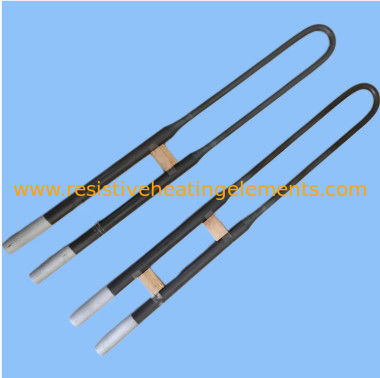

U type Mosi2 Heating elemet

Silicon molybdenum rod resistive electric heating element is a high temperature resistant and oxidation resistant resistance heating element made based on molybdenum disilicide. When used in a high-temperature oxidizing atmosphere, a bright and dense quartz (SiO2) glass film is formed on the surface, which can protect the inner layer of the silicon molybdenum rod from oxidation. Therefore, the silicon molybdenum rod component has special high-temperature oxidation resistance.

Under an oxidizing atmosphere and at a high operating temperature of 1800 ℃, the resistance of silicon molybdenum rod electric heating elements increases rapidly with increasing temperature, and the resistance value remains stable when the temperature remains constant. Under normal circumstances, the resistance of the component does not change with the length of use, so new and old silicon molybdenum rod electric heating elements can be mixed for use.

Silicon molybdenum rod electric heating element products are widely used in the research, production, and manufacturing of metallurgy, steelmaking, glass, ceramics, refractory materials, crystals, electronic components, semiconductor materials, and other fields, especially for precision ceramics, high-grade artificial crystals, precision structural metal ceramics, and glass fibers

Products are shipped from the factory using export packaging, and large quantities are shipped on pallets. Provide users with installation, usage, and temperature control technology services.

Corrosion Resistance	Excellent
High Temperature Strength	High
Voltage	220V-480V
Power	1-10KW
Usage	Heating element
Maximum Temperature	1800℃
