220V-480V MoSi2 Heating Element 1800c Electric Furnace Element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                480v mosi2 heating element, mosi2 heating element 1800c, 1800c electric furnace element


Corrosion Resistance:	Excellent	High Temperature Strength:	High
Voltage:	220V-480V	Power:	1-10KW
Usage:	Heating Element	Maximum Temperature:	1800℃
Resistance:	1.2-2.8Ω	Thermal Shock Resistance:	Good
Shape:	U Type	Material:	Mosi2
Application:	Industrial Furnace, Laboratory Furnace, Heat Treatment Equipment	Length:	100-3000mm
Diameter:	3-12mm	Surface Load:	4-6W/cm²

Corrosion Resistance:	Excellent
High Temperature Strength:	High
Voltage:	220V-480V
Power:	1-10KW
Usage:	Heating Element
Maximum Temperature:	1800℃
Resistance:	1.2-2.8Ω
Thermal Shock Resistance:	Good
Shape:	U Type
Material:	Mosi2
Application:	Industrial Furnace, Laboratory Furnace, Heat Treatment Equipment
Length:	100-3000mm
Diameter:	3-12mm
Surface Load:	4-6W/cm²

Product Description

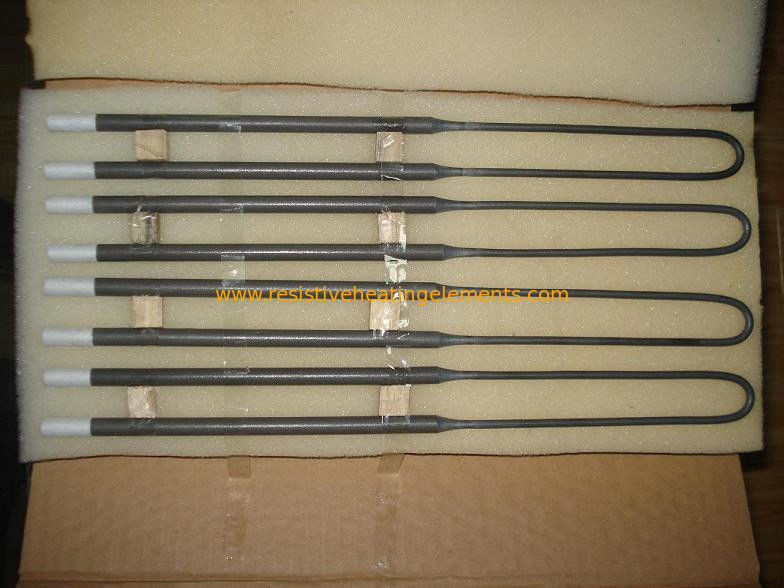

U type Mosi2 Heating elemet

U-type Molybdenum Disilicide (MoSi₂) Heating Element is a high-performance electric heating device, playing a crucial role in numerous high-temperature industrial application fields. It is designed and manufactured based on the unique material properties of molybdenum disilicide and has a U-shaped structure. This shape design enables it to achieve more efficient uniform heating and heat transfer in specific heating equipment.
II. Material Properties
High Temperature Stability: Molybdenum disilicide exhibits excellent high-temperature performance with a melting point of around 2030℃, allowing it to work stably for a long time in high-temperature environments. In practical applications, U-type molybdenum disilicide heating elements can continuously and effectively provide heat within the high-temperature range of 1600℃ to 1800℃, meeting the requirements of various high-temperature heating processes.
Oxidation Resistance: Under high-temperature oxidizing atmospheres, a dense silicon dioxide (SiO₂) protective film will form on the surface of molybdenum disilicide. This protective film can effectively prevent oxygen from further eroding the internal molybdenum disilicide material, endowing the U-type heating element with excellent oxidation resistance and significantly prolonging its service life. Even under the working conditions of being in a high-temperature and oxygen-containing environment for a long time, it can still maintain good performance.

Corrosion Resistance	Excellent
High Temperature Strength	High
Voltage	220V-480V
Power	1-10KW
Usage	Heating element
Maximum Temperature	1800℃
