300mm MoSi2 Heating Element 220V 1000W Moly Disilicide Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                300mm MoSi2 Heating Element, MoSi2 Heating Element 220V, 1000W Moly Disilicide Heating Elements


Shape:	W Shape	Resistance:	1.2Ω
Maximum Temperature:	1800°C	Application:	High Temperature Heating In Industrial And Laboratory Settings
Hot Zone Length:	200mm	Diameter:	6mm
Material:	Molybdenum Disilicide (Mosi2)	Voltage:	220V
Power:	1000W	Cold Zone Length:	100mm
Product Type:	Heating Element	Length:	300mm

Shape:	W Shape
Resistance:	1.2Ω
Maximum Temperature:	1800°C
Application:	High Temperature Heating In Industrial And Laboratory Settings
Hot Zone Length:	200mm
Diameter:	6mm
Material:	Molybdenum Disilicide (Mosi2)
Voltage:	220V
Power:	1000W
Cold Zone Length:	100mm
Product Type:	Heating Element
Length:	300mm

Product Description

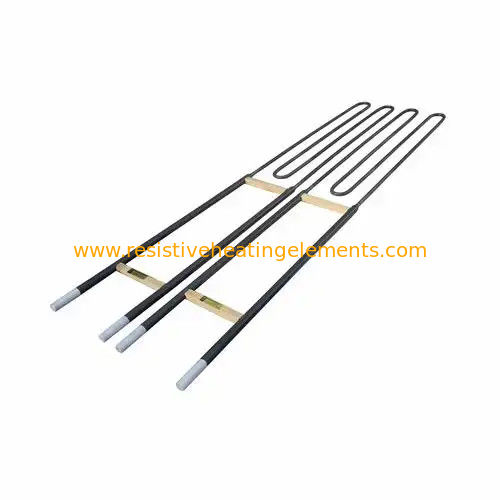

W type Mosi2 Heating Element

Oxidation resistance at high temperatures: In oxidizing gases, due to high-temperature combustion, a dense quartz protective film is formed on the surface of the component to prevent further oxidation of Mosi2. When the temperature of the component exceeds 1700 ° C, the film will melt. It is not suitable for long-term use in the temperature range of 400-700 ° C, otherwise the component will pulverize due to strong oxidation at low temperatures.

300mm MoSi2 Heating Element 220V 1000W Moly Disilicide Heating Elements 0

Atmosphere	SP1700	SP1800
Air	1700	1800
N2 Nitrogen	1600	1700
Ar Ne Argon,Helium	1600	1700
Dry Hydrogen(dew point)-80°C	1150	1150
Wet Hydrogen(dew point)-20°C	1450	1450
Exogas(e.g.10% CO2,50%CO,15%H2)	1600	1700
Exogas(e.g.40%CO2,20%CO)	1400	1450
Cracked and partially burnt ammonia	1400	1450
