Resistive Electric Heating Element Silicon Molybdenum Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Resistive Electric Heating Element, Electric Heating Element Silicon Molybdenum, Silicon Molybdenum Heating Elements


Material:	Molybdenum Disilicide (Mosi2)	Corrosion Resistance:	Excellent
Diameter:	3mm-12mm	Voltage:	220V-240V
Shape:	W Type	Resistance:	1.2Ω-2.5Ω
Thermal Shock Resistance:	Good	Application:	High Temperature Furnace
Length:	100mm-500mm	Surface Load:	5-10W/cm²
Max Temperature:	1800°C	Power:	100W-1000W
Heating Zone:	Single/Double

Material:	Molybdenum Disilicide (Mosi2)
Corrosion Resistance:	Excellent
Diameter:	3mm-12mm
Voltage:	220V-240V
Shape:	W Type
Resistance:	1.2Ω-2.5Ω
Thermal Shock Resistance:	Good
Application:	High Temperature Furnace
Length:	100mm-500mm
Surface Load:	5-10W/cm²
Max Temperature:	1800°C
Power:	100W-1000W
Heating Zone:	Single/Double

Product Description

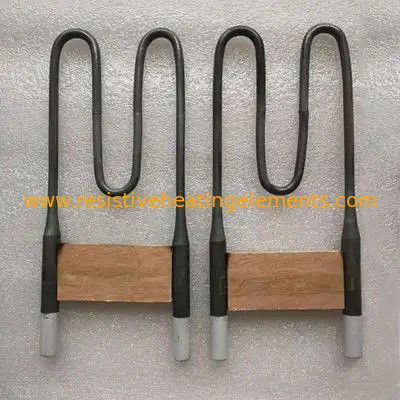

W type Mosi2 Heating Element

Silicon molybdenum rod resistive electric heating element is a high temperature resistant and oxidation resistant resistance heating element made based on molybdenum disilicide. When used in a high-temperature oxidizing atmosphere, a bright and dense quartz (SiO2) glass film is formed on the surface, which can protect the inner layer of the silicon molybdenum rod from oxidation. Therefore, silicon molybdenum rod components have unique high-temperature oxidation resistance.

Under an oxidizing atmosphere and with a maximum operating temperature of 1800 ℃, the resistance of silicon molybdenum rod electric heating elements increases rapidly with increasing temperature, and the resistance value remains stable when the temperature remains constant. Under normal circumstances, the resistance of the component does not change with the length of use, so new and old silicon molybdenum rod electric heating elements can be mixed for use.

Voltage	220V/380V
Heating Zone	Single/Double
Thermal Shock Resistance	Good
Diameter	3/6/9/12mm
Material	Mosi2 (Molybdenum Disilicide)
Length	100/200/300/400/500/600/700/800/900/1000mm
Features	High temperature resistance, fast heating, long service life
Application	High temperature furnace, vacuum furnace, sintering furnace, heat treatment furnace, etc.
