6.5kW MoSi2 Heating Element 110V-480V Molybdenum Disilicide Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                6.5kW MoSi2 Heating Element, MoSi2 Heating Element 110V, 480V Molybdenum Disilicide Elements


Shape:	W Type	Material:	Molybdenum Disilicide (Mosi2)
Longevity:	Up To 2000 Hours	Customization:	Available Upon Request
Application:	High Temperature Industrial Heating	Size:	Customizable
Resistance:	0.5-10 Ohms	Voltage:	110V-480V
Temperature Range:	Up To 1800°C	Product Type:	Heating Element
Thermal Shock Resistance:	Excellent	Maximum Power:	Up To 6.5 KW
Certifications:	ISO 9001:2015	Operating Atmosphere:	Vacuum Or Inert Gas
Advantages:	High Temperature Resistance, Low Thermal Expansion, High Thermal Conductivity

Shape:	W Type
Material:	Molybdenum Disilicide (Mosi2)
Longevity:	Up To 2000 Hours
Customization:	Available Upon Request
Application:	High Temperature Industrial Heating
Size:	Customizable
Resistance:	0.5-10 Ohms
Voltage:	110V-480V
Temperature Range:	Up To 1800°C
Product Type:	Heating Element
Thermal Shock Resistance:	Excellent
Maximum Power:	Up To 6.5 KW
Certifications:	ISO 9001:2015
Operating Atmosphere:	Vacuum Or Inert Gas
Advantages:	High Temperature Resistance, Low Thermal Expansion, High Thermal Conductivity

Product Description

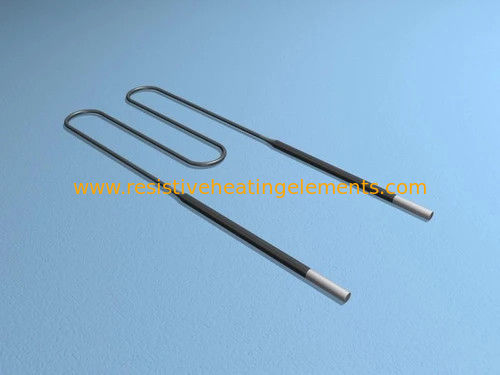

W type Mosi2 Heating Element

If matched with an automated power supply system, it can not only obtain accurate constant temperature, but also automatically adjust temperature according to the actual needs of the production process according to the curve. It has been widely used in fields such as national defense, machinery, metallurgy, lightweighting, ceramics, semiconductors, analysis and testing, scientific research, and has become an electric heating element for various electric furnaces and kilns Tunnel kilns, roller kilns, glass kilns, vacuum furnaces, muffle furnaces, smelting furnaces, and various heating equipment use silicon carbide rods for heating, which is convenient, safe, and reliable. Various high-temperature electric furnaces and kilns widely used in industries such as electronics, magnetic materials, powder metallurgy, ceramics, glass, metallurgy, and machinery. On its electric heating equipment

Voltage	220V/380V
Heating Zone	Single/Double
Thermal Shock Resistance	Good
Diameter	3/6/9/12mm
Material	Mosi2 (Molybdenum Disilicide)
Length	100/200/300/400/500/600/700/800/900/1000mm
Features	High temperature resistance, fast heating, long service life
Application	High temperature furnace, vacuum furnace, sintering furnace, heat treatment furnace, etc.
