W Shaped MoSi2 Heating Element 220V 380V Moly Disilicide For Vacuum Furnace

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                W Shaped MoSi2 Heating Element, 380V MoSi2 Heating Element, Vacuum Furnace Moly Disilicide


Thermal Conductivity:	52 W/m·K	Heating Zone Length:	Up To 1000 Mm
Operating Voltage:	Up To 240 V	Shape:	W Type
Maximum Power:	Up To 2000 W	Size:	Customizable
Density:	6.5 G/cm3	Electrical Resistivity:	1.2 μΩ·m
Max Temperature:	1800°C	Cold Zone Length:	Up To 200 Mm
Application:	High Temperature Industrial Heating	Surface Load:	Up To 4 W/cm2
Material:	Mosi2	Hot Zone Length:	Up To 500 Mm

Thermal Conductivity:	52 W/m·K
Heating Zone Length:	Up To 1000 Mm
Operating Voltage:	Up To 240 V
Shape:	W Type
Maximum Power:	Up To 2000 W
Size:	Customizable
Density:	6.5 G/cm3
Electrical Resistivity:	1.2 μΩ·m
Max Temperature:	1800°C
Cold Zone Length:	Up To 200 Mm
Application:	High Temperature Industrial Heating
Surface Load:	Up To 4 W/cm2
Material:	Mosi2
Hot Zone Length:	Up To 500 Mm

Product Description

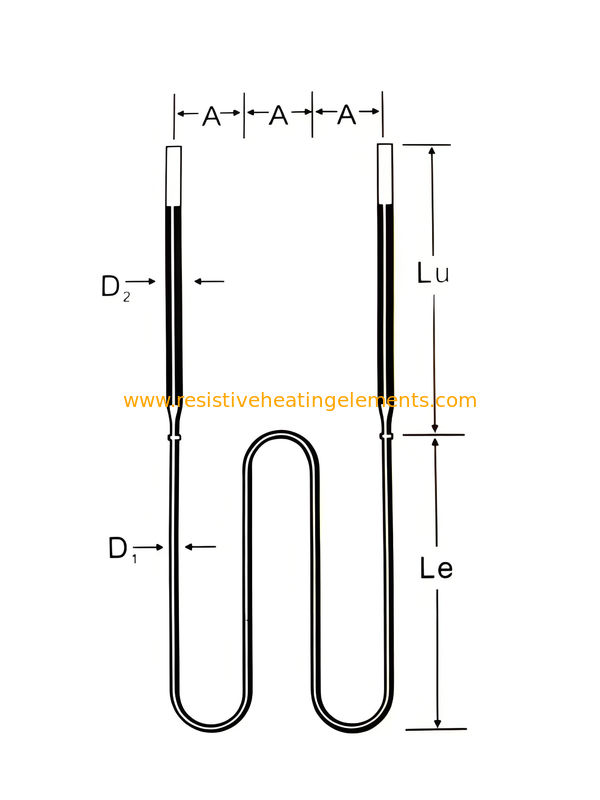

W type Mosi2 Heating Element

The W-shaped MoSi2 heating element is a remarkable innovation in the field of heating technology. Crafted with precision and made from high-quality molybdenum disilicide, it offers exceptional heat resistance and durability. Its unique W-shape design not only enhances the aesthetic appeal but also maximizes heat transfer efficiency. This heating element is capable of withstanding extremely high temperatures, making it ideal for a wide range of industrial applications such as furnaces, kilns, and heat treatment processes. With its reliable performance and long service life, it is a cost-effective solution for businesses looking for efficient heating options.

Voltage	220V/380V
Heating Zone	Single/Double
Thermal Shock Resistance	Good
Diameter	3/6/9/12mm
Material	Mosi2 (Molybdenum Disilicide)
Length	100/200/300/400/500/600/700/800/900/1000mm
Features	High temperature resistance, fast heating, long service life
Application	High temperature furnace, vacuum furnace, sintering furnace, heat treatment furnace, etc.
