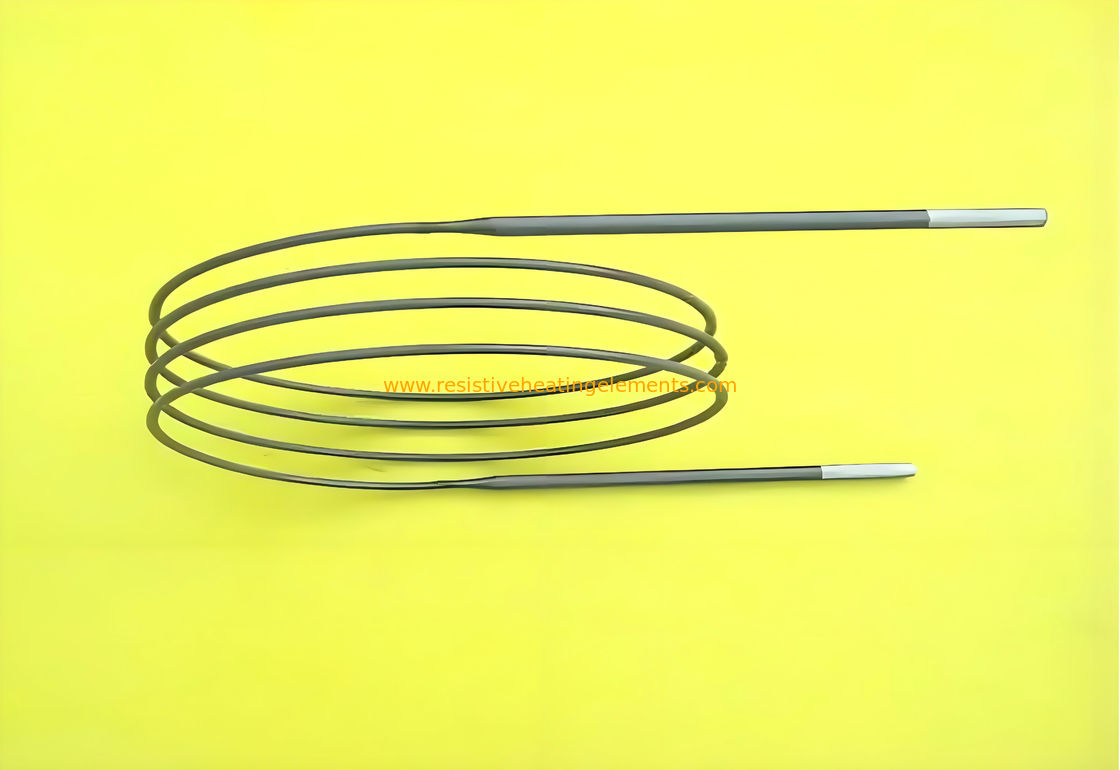

MoSi2 Element Molybdenum Disilicide Heating Elements For Annealing Brazing

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Annealing MoSi2 Element, Brazing MoSi2 Element, Molybdenum Disilicide Heating Elements


Features:	High Temperature Resistance, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life	Diameter:	6-12 Mm
Certifications:	ISO 9001:2015, RoHS, CE	Voltage:	Up To 240V
Customization:	Available Upon Request	Material:	Molybdenum Disilicide (MoSi₂)
Applications:	Heat Treatment, Sintering, Annealing, Brazing, Glass Melting, Ceramic Firing, Etc.	Hot Zone Length:	100-600 Mm
Overall Length:	250-1000 Mm	Size:	3/6, 4/9, 6/12, 9/18, 12/24
Maximum Power:	Up To 3.5 KW	Shape:	U Type
Resistance:	1.2-2.2 Ω	Temperature Range:	Up To 1800°C

Features:	High Temperature Resistance, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life
Diameter:	6-12 Mm
Certifications:	ISO 9001:2015, RoHS, CE
Voltage:	Up To 240V
Customization:	Available Upon Request
Material:	Molybdenum Disilicide (MoSi₂)
Applications:	Heat Treatment, Sintering, Annealing, Brazing, Glass Melting, Ceramic Firing, Etc.
Hot Zone Length:	100-600 Mm
Overall Length:	250-1000 Mm
Size:	3/6, 4/9, 6/12, 9/18, 12/24
Maximum Power:	Up To 3.5 KW
Shape:	U Type
Resistance:	1.2-2.2 Ω
Temperature Range:	Up To 1800°C

Product Description

SPK MoSi₂ heating element

The MoSi₂ resistive heating element is equipped with multiple safety features, including overheat protection, short-circuit protection, and insulation monitoring. These safeguards ensure safe operation in various environments, providing peace of mind to users.
Rigorous quality testing and reliability validation ensure that the heating element can operate continuously for extended periods without failure. Its stability and durability make it a trusted choice for critical applications.

Diameter	6-12 mm
Certifications	ISO 9001:2015, RoHS, CE
Voltage	up to 240V
Customization	Available upon request
Features	High temperature resistance, low thermal expansion, excellent thermal shock resistance, long service life
Material	Molybdenum disilicide (MoSi₂)

Precautions for MoSi2 elements

MoSi₂ heating elements should not be operated within the temperature range of 400 ℃ to 700 ℃. In this unfavorable temperature range, the elements are susceptible to low-temperature oxidation, which can cause damage.
These heating elements are intended for use in air and neutral atmospheres. Reducing atmospheres like hydrogen will damage the protective layer, and chlorine and sulfur vapor will have a direct detrimental effect on the elements.
When the temperature is above 1500 ℃, MoSi₂ heating elements become soft. At low temperatures, they are hard and brittle. To avoid stress due to temperature changes and facilitate the expansion and contraction of the elements, the free vertical hanging installation method is recommended. This makes the removal and replacement of lifting elements easier and allows for heat exchange without waiting for the furnace to cool down.
