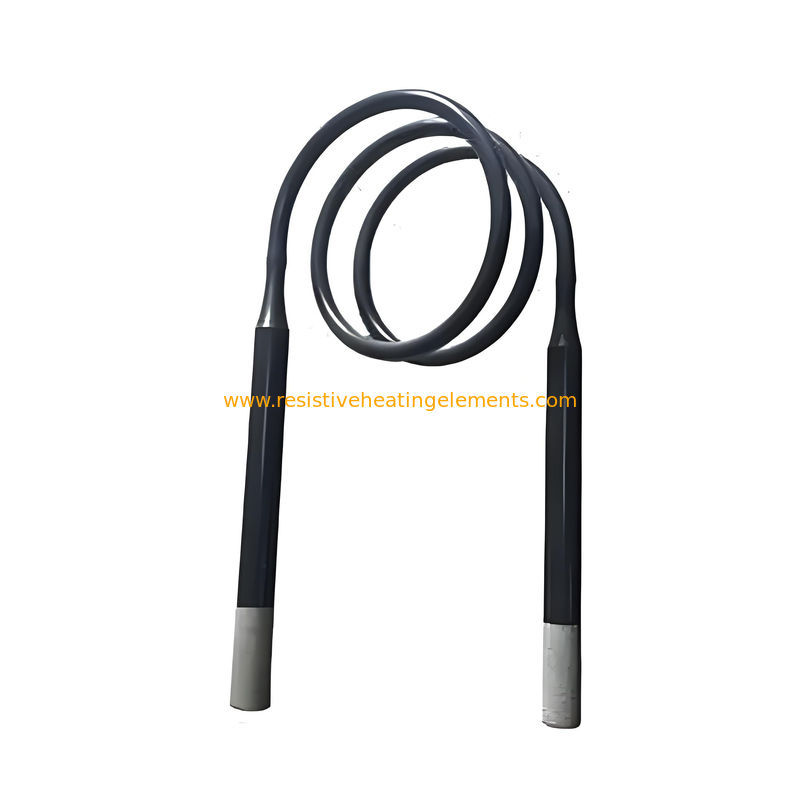

Industrial Molybdenum Disilicide Heating Elements For Sintering Furnace

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Industrial Molybdenum Disilicide Heating Elements, Sintering Furnace MoSi2 heater, Sintering Furnace MoSi2 element


Features:	High Temperature Resistance, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life	Diameter:	6-12 Mm
Certifications:	ISO 9001:2015, RoHS, CE	Voltage:	Up To 240V
Customization:	Available Upon Request	Material:	Molybdenum Disilicide (MoSi₂)
Applications:	Heat Treatment, Sintering, Annealing, Brazing, Glass Melting, Ceramic Firing, Etc.	Hot Zone Length:	100-600 Mm
Overall Length:	250-1000 Mm	Size:	3/6, 4/9, 6/12, 9/18, 12/24
Maximum Power:	Up To 3.5 KW	Shape:	U Type
Resistance:	1.2-2.2 Ω	Temperature Range:	Up To 1800°C

Features:	High Temperature Resistance, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life
Diameter:	6-12 Mm
Certifications:	ISO 9001:2015, RoHS, CE
Voltage:	Up To 240V
Customization:	Available Upon Request
Material:	Molybdenum Disilicide (MoSi₂)
Applications:	Heat Treatment, Sintering, Annealing, Brazing, Glass Melting, Ceramic Firing, Etc.
Hot Zone Length:	100-600 Mm
Overall Length:	250-1000 Mm
Size:	3/6, 4/9, 6/12, 9/18, 12/24
Maximum Power:	Up To 3.5 KW
Shape:	U Type
Resistance:	1.2-2.2 Ω
Temperature Range:	Up To 1800°C

Product Description

SPK MoSi₂ heating element

As technology continues to advance, the MoSi₂ resistive heating element is poised for further innovation. With ongoing research and development, it is expected to offer even better performance, higher energy efficiency, and more intelligent control features, meeting the evolving needs of various industries.
Looking ahead, this heating element will play a crucial role in emerging fields such as green energy production and advanced materials processing. Its unique properties and capabilities make it a key enabler for sustainable development and technological progress.

Diameter	6-12 mm
Certifications	ISO 9001:2015, RoHS, CE
Voltage	up to 240V
Customization	Available upon request
Features	High temperature resistance, low thermal expansion, excellent thermal shock resistance, long service life
Material	Molybdenum disilicide (MoSi₂)

Precautions for MoSi2 elements

Care should be taken to ensure that MoSi₂ heating elements are not used within the temperature range of 400 ℃ to 700 ℃. In this unfavorable temperature span, low-temperature oxidation may occur, causing damage to the elements.
MoSi₂ heating elements are suitable for use in air and neutral atmospheres. A reducing atmosphere like hydrogen will damage the protective layer, and chlorine and sulfur vapor will directly impact the elements negatively.
At high temperatures above 1500 ℃, MoSi₂ heating elements become soft. At low temperatures, they are hard and brittle. To prevent stress during temperature changes and allow for the smooth expansion and contraction of the elements, the free vertical hanging installation method is a good option. This makes it easier to remove and replace the lifting elements and permits heat exchange without waiting for the furnace to cool.
