1600C SiC Furnace Element Silicon Carbide Heating Element Resistance

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1600°C SiC Furnace Element, 1600C Silicon Carbide Heating Element Resistance, Silicon Carbide Furnace Element


Shape:	Rod	Size:	Customizable
Chemical Inertness:	High	Resistance:	High
Thermal Conductivity:	High	Diameter:	3-54mm
Length:	Customizable	Maximum Temperature:	1600°C
Heating Zone:	Single Or Multi-zone	Voltage:	Customizable
Wattage:	Customizable	Application:	High Temperature Heating
Material:	Silicon Carbide	Type:	H-type

Shape:	Rod
Size:	Customizable
Chemical Inertness:	High
Resistance:	High
Thermal Conductivity:	High
Diameter:	3-54mm
Length:	Customizable
Maximum Temperature:	1600°C
Heating Zone:	Single Or Multi-zone
Voltage:	Customizable
Wattage:	Customizable
Application:	High Temperature Heating
Material:	Silicon Carbide
Type:	H-type

Product Description

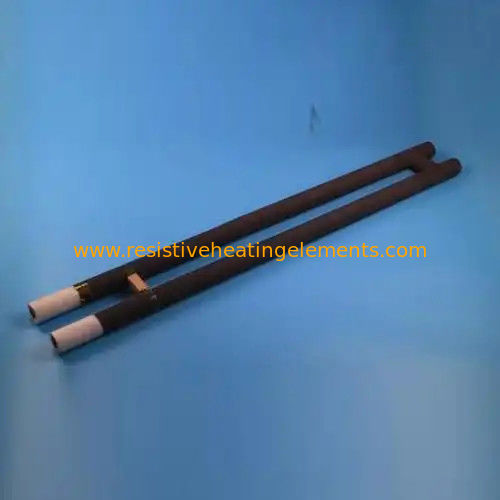

H-type silicon carbide rod

The H-type silicon heating element is made by taking two carefully matched SiC rods and welding a thick silicon carbide bridge. This component is used to wire the two ends from one side of the furnace. The tail end of the cold end is metalized with aluminum, which provides a low resistance contact surface for the aluminum connecting strip and fixture.

The H-type silicon heating element is composed of two ED silicon heating elements that share a cold end, so it can be connected through the power cord at one end of the furnace. The surface temperature of the heating part is 1500 ℃. Mainly used for kilns with high furnace temperature and high temperature uniformity. Its characteristics are energy-saving and long service life.

Shape	Rod
Diameter	3-54mm
Length	Customizable
Maximum Temperature	1600°C
Heating Zone	Single or multi-zone
Application	High temperature heating
Material	Silicon carbide
Type	H-type
