110V-240V Silicon Carbide Rod 1600C SiC Heating Element For Gas Furnace

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                240V Silicon Carbide Rod, 110V Silicon Carbide Rod, SiC Heating Element For Gas Furnace


Heating Zone Length:	300mm-600mm	Resistance:	1.2Ω-5Ω
Flexural Strength:	300-400 MPa	Type:	H-type
Cold End Length:	100mm-200mm	Length:	100mm-2000mm
Wattage:	100W-1000W	Density:	3.1-3.2 G/cm³
Diameter:	5mm-50mm	Maximum Temperature:	1600°C
Voltage:	110V-240V	Thermal Conductivity:	120-150 W/mK
Material:	Silicon Carbide	Shape:	Rod

Heating Zone Length:	300mm-600mm
Resistance:	1.2Ω-5Ω
Flexural Strength:	300-400 MPa
Type:	H-type
Cold End Length:	100mm-200mm
Length:	100mm-2000mm
Wattage:	100W-1000W
Density:	3.1-3.2 G/cm³
Diameter:	5mm-50mm
Maximum Temperature:	1600°C
Voltage:	110V-240V
Thermal Conductivity:	120-150 W/mK
Material:	Silicon Carbide
Shape:	Rod

Product Description

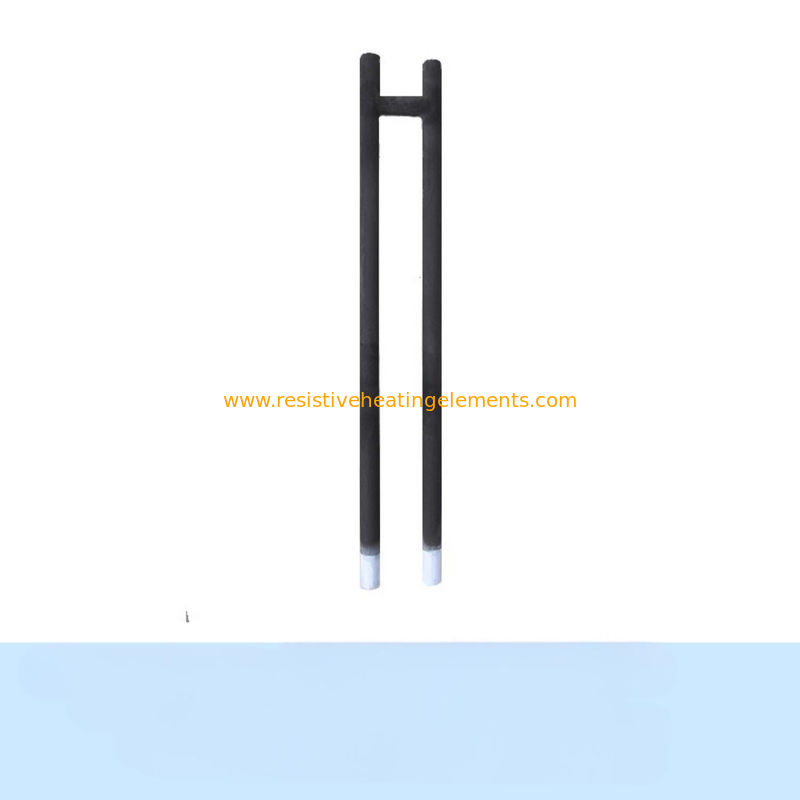

H-type silicon carbide rod

H-type silicon carbide rod (GDH): commonly used for heating and insulation in the glass industry's supply channels and material bowl sections. The electrical properties of silicon carbide rod. Silicon carbide rod is a nonlinear resistor with significant dispersion at room temperature.

Type	H-type
Heating Zone Length	300mm-600mm
Resistance	1.2Ω-5Ω
Flexural Strength	300-400 MPa
Wattage	100W-1000W
Density	3.1-3.2 g/cm³
Diameter	5mm-50mm
Maximum Temperature	1600°C
