1600 Degree Silicon Heating Element SiC Industrial Furnace Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1600 Degree Silicon Heating Element, 1600 Degree Industrial Furnace Heating Elements, SiC Industrial Furnace Heating Elements


Shape:	Rod	Diameter:	1-60mm
Type:	H-type	Flexural Strength:	250-500MPa
Thermal Conductivity:	100-130W/m·K	Chemical Resistance:	Excellent
Electrical Resistivity:	10^-3 Ω·cm	Density:	3.05g/cm³
Thermal Shock Resistance:	Good	Maximum Operating Temperature:	1600°C
Length:	100-3000mm	Material:	Silicon Carbide
Application:	High Temperature Heating And Industrial Furnaces	Compressive Strength:	1500-2000MPa

Shape:	Rod
Diameter:	1-60mm
Type:	H-type
Flexural Strength:	250-500MPa
Thermal Conductivity:	100-130W/m·K
Chemical Resistance:	Excellent
Electrical Resistivity:	10^-3 Ω·cm
Density:	3.05g/cm³
Thermal Shock Resistance:	Good
Maximum Operating Temperature:	1600°C
Length:	100-3000mm
Material:	Silicon Carbide
Application:	High Temperature Heating And Industrial Furnaces
Compressive Strength:	1500-2000MPa

Product Description

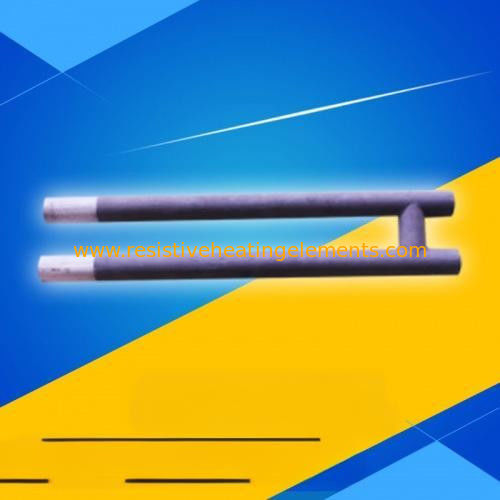

H-type silicon carbide rod

Before installing and using the silicon carbide rod, check the resistance (Ω) value marked on the cold end. If the handwriting is unclear, it must be retested. The testing method is to measure the voltage and current of the silicon carbide rod when it is heated to a high temperature of 1050 ℃, and calculate the resistance according to Ohm's law. The testing principle is shown in the following figure.

When using silicon carbide rods, each group of rods should be equipped with high-temperature resistance matching resistors. The allowable difference in the electrical value of the matching resistors is: for rods with a diameter of ≥ 12mm, the allowable difference in resistance value is ≤ 0.2 Ω; for rods with a diameter of ≤ 8mm, the allowable difference in resistance value is ≤ 0.5 Ω.

Shape	Rod
Diameter	1-60mm
Type	H-type
Flexural Strength	250-500MPa
Thermal Conductivity	100-130W/m·K
Chemical Resistance	Excellent
Electrical Resistivity	10^-3 Ω·cm
Density	3.05g/cm³
