SiC Vacuum Furnace Heating Elements Grade 1400C SiC Element Rod

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SiC Vacuum Furnace Heating Elements, Grade 1400C SiC Element, SiC Element Rod


Features:	High Thermal Conductivity, Low Thermal Expansion, Excellent Thermal Shock Resistance	Mounting Type:	Horizontal
Wattage:	1000 Watts	Terminal Connection:	Threaded Stud
Type:	H-type	Voltage:	240 Volts
Material:	Silicon Carbide	Heating Zone:	Single
Length:	12 Inches	Application:	High Temperature Heating
Maximum Operating Temperature:	1400°C	Resistance:	1.5 Ohms
Diameter:	1/4 Inch	Shape:	Rod

Features:	High Thermal Conductivity, Low Thermal Expansion, Excellent Thermal Shock Resistance
Mounting Type:	Horizontal
Wattage:	1000 Watts
Terminal Connection:	Threaded Stud
Type:	H-type
Voltage:	240 Volts
Material:	Silicon Carbide
Heating Zone:	Single
Length:	12 Inches
Application:	High Temperature Heating
Maximum Operating Temperature:	1400°C
Resistance:	1.5 Ohms
Diameter:	1/4 Inch
Shape:	Rod

Product Description

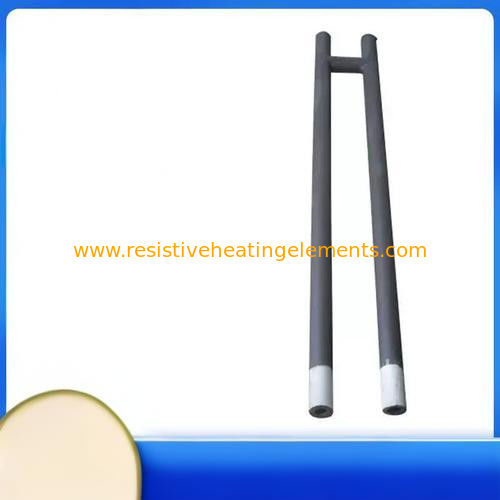

H-type silicon carbide rod

After the rod passes through the rod holes on both sides (or up and down) of the furnace wall, it should rotate freely 360 degrees to prevent forced installation and knocking. Before installing the rod, an iron pipe with the same diameter as the rod can be used for trial installation.

The use of silicon carbide rods must be equipped with voltage regulators or controllable silicon voltage regulators, as well as voltage, current meters, and temperature automatic control instruments. During use, due to the oxidation of the rod, the resistance gradually increases. In order to maintain normal furnace temperature, the operating voltage should be increased. When the voltage reaches the maximum limit of the voltage regulator used but still cannot meet the requirements, the furnace can be stopped and the wiring method of the rod can be changed before continuing to use.

Mounting Type	Horizontal
Wattage	1000 watts
Terminal Connection	Threaded stud
Type	H-type
Voltage	240 volts
Material	Silicon carbide
Heating Zone	Single
Length	12 inches
