1700C SPK MoSi2 Electric Furnace Element Molybdenum Disilicide Heater

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                MoSi2 Electric Furnace Element, SPK Molybdenum Disilicide Heater, 1700C Molybdenum Disilicide Heater


Max. Power:	Up To 4.5 KW	Density:	6.3 G/cm³
Size:	Customized	Thermal Expansion Coefficient:	4.5 X 10^-6/℃
Resistance:	Up To 2.2 Ω	Material:	MoSi₂
Voltage:	Up To 240V	Operating Temperature:	Up To 1700℃
Surface Load:	Up To 4.2 W/cm²	Temperature Range:	Up To 1800℃
Application:	High Temperature Heating	Thermal Conductivity:	Up To 24 W/m·K

Max. Power:	Up To 4.5 KW
Density:	6.3 G/cm³
Size:	Customized
Thermal Expansion Coefficient:	4.5 X 10^-6/℃
Resistance:	Up To 2.2 Ω
Material:	MoSi₂
Voltage:	Up To 240V
Operating Temperature:	Up To 1700℃
Surface Load:	Up To 4.2 W/cm²
Temperature Range:	Up To 1800℃
Application:	High Temperature Heating
Thermal Conductivity:	Up To 24 W/m·K

Product Description

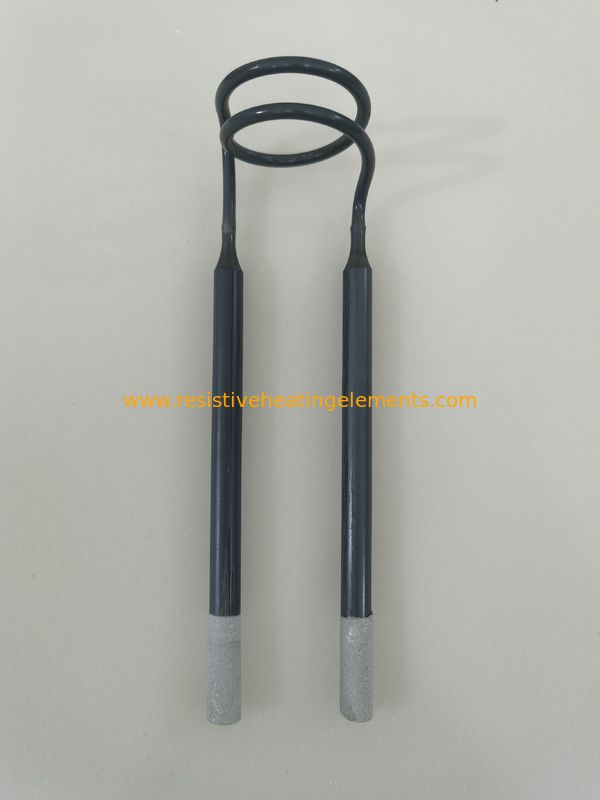

SPK MoSi₂ heating element

MoSi ₂ resistance heating element is a high-temperature and anti-oxidation heating element based on molybdenum disilicide. When used in a high-temperature oxidizing atmosphere, a bright and dense quartz (SiO2) glass film forms on its surface, which can protect the inner layer of the silicon molybdenum rod from oxidation. Therefore, the silicon molybdenum rod component has unique high-temperature oxidation resistance.

Max. Power	Up to 4.5 kW
Density	6.3 g/cm³
Size	customized
Thermal Expansion Coefficient	4.5 x 10^-6/℃
Resistance	Up to 2.2 Ω
Material	MoSi₂
Voltage	Up to 240V
Operating Temperature	Up to 1700℃
