Highlight:
1400c silicon carbide elements
, silicon carbide elements sic
, sic silicon carbide rod heater
Features: |
High Temperature Resistance, High Thermal Conductivity, Long Service Life |
Product Type: |
Heating Elements |
Material: |
Silicon Carbide (SiC) |
Shape: |
W Shape |
Cold End Length: |
100mm, 150mm, 200mm, 250mm, 300mm |
Voltage: |
220V, 240V, 480V, 600V |
Power: |
1500W, 2000W, 2500W, 3000W, 3500W, 4000W |
Hot Zone Length: |
200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm |
Max Temperature: |
1400°C |
Density: |
2.6g/cm³ |
Length: |
300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm |
Diameter: |
12mm, 14mm, 16mm, 18mm, 20mm |
Resistance: |
1.2Ω, 1.4Ω, 1.6Ω, 1.8Ω, 2.0Ω |
Thermal Conductivity: |
120W/m·K |

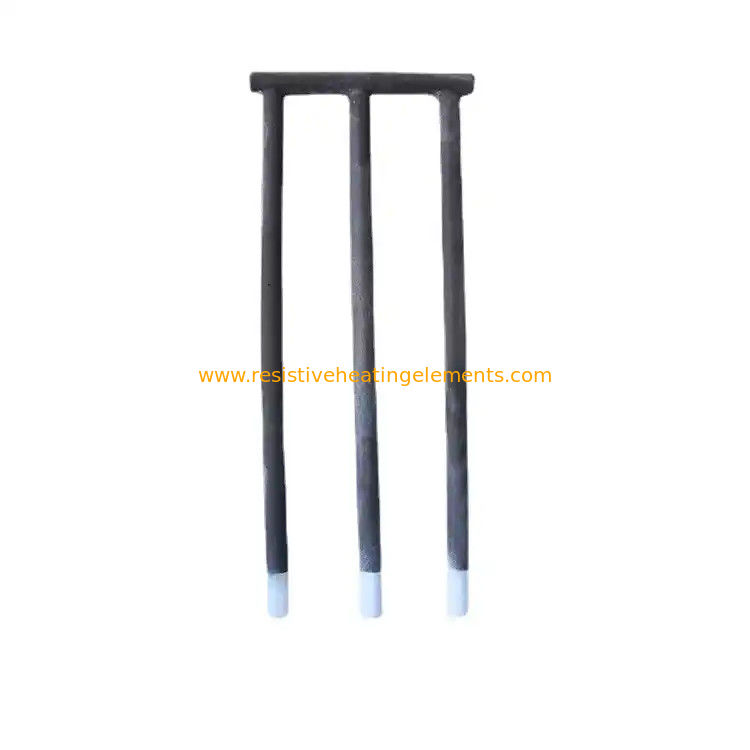

W Type SiC Heating Elements
Advantages of Silicon Carbide Heater
1. The temperature can reach up to 1500 ° C (surface temperature).
2. There are various shapes available, such as rod-shaped, U-shaped, W-shaped, single helix, and double helix, to meet your needs.
3. The size range is relatively large.
4. Generate high heat output per unit surface area.
Application of Silicon Carbide Heater
It can be widely used in sintering and heating elements for ceramics, magnets, glass, metallurgy, refractory materials, etc.
There are two different types of three-phase components: SGC (dumbbell type) and SGD (standard type).
These elements are self bonded silicon carbide formed by recrystallization of silicon carbide at high temperatures. It consists of three high-purity silicon carbide rods, with one end connected by a silicon carbide crossbar. SGC components are designed for vertical installation in standard float glass baths, while SGD components are designed for horizontal installation. They can be directly connected to a three-phase power supply and are a single-sided terminal type that allows terminals to be extracted from the furnace top.
| Product Type |
Heating Elements |
| Material |
Silicon Carbide (SiC) |
| Shape |
W Shape |
| Features |
High Temperature Resistance, High Thermal Conductivity, Long Service Life |
| Cold End Length |
100mm, 150mm, 200mm, 250mm, 300mm |
| Voltage |
220V, 240V, 480V, 600V |
