240V SiC Heating Elements 1400 Degree Silicon Carbon Rod For Oven

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                240v sic heating elements, 1400 degree silicon carbon rod, sic heating elements 1400 degree


Maximum Load:	30kg	Heating Element Material:	Silicon Carbide (SiC)
Heating Zone Length:	300mm	Hot End Length:	100mm
Resistance At 1000°C:	1.2Ω	Shape:	Straight
Cold End Length:	100mm	Application:	High Temperature Furnaces
Max Temperature:	1400°C	Length:	500mm
Operating Voltage:	220V-240V	Diameter:	12mm
Thermal Conductivity:	150 W/m·K	Watt Density:	9-12 W/cm²

Maximum Load:	30kg
Heating Element Material:	Silicon Carbide (SiC)
Heating Zone Length:	300mm
Hot End Length:	100mm
Resistance At 1000°C:	1.2Ω
Shape:	Straight
Cold End Length:	100mm
Application:	High Temperature Furnaces
Max Temperature:	1400°C
Length:	500mm
Operating Voltage:	220V-240V
Diameter:	12mm
Thermal Conductivity:	150 W/m·K
Watt Density:	9-12 W/cm²

Product Description

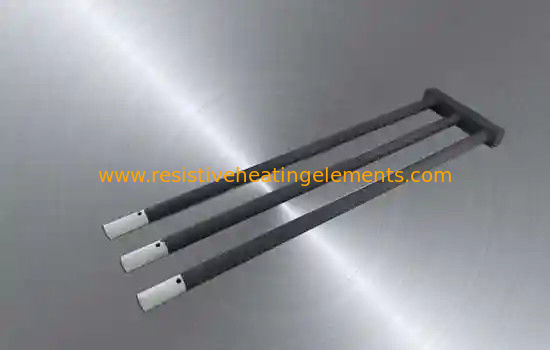

W Type SiC Heating Elements

In the production process of float glass, due to the prolonged exposure of silicon carbide rods to harsh tin bath environments, there are special and strict requirements for silicon carbide rods used in tin baths. Generally, silicon carbide heating elements cannot withstand high temperatures The erosion of corrosive gases requires high-density heating elements with a long service life for silicon carbon rods used in tin baths. W-shaped silicon carbide rods are used in float glass tin tanks, optical glass melting, glass deep processing, controlled atmosphere electric furnaces, etc.
The W-shaped silicon carbon rod heating element material can be selected from the following three types:
MHD heating element material density>2.8g/cm3, surface temperature 1625 ° C
HD solid heating material density>2.58g/cm;, Surface temperature 1625 ℃
HD hollow heating material density>2.58g/cm, surface temperature 1625 ℃

Wattage	600-3000W
Maximum Operating Temperature	1400°C
Diameter	3/6/9/12/18/24mm
Terminal Type	Straight/Right Angle
Surface Load	5-7W/cm²
Material	Silicon Carbide
Shape	W Shape
Hot Zone Length	150-250mm
