7kW 8kW 9kW SiC Silicon Heating Element 400V 1600C Silicon Carbide Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                sic silicon heating element, silicon heating element 400v, 1600c silicon carbide elements


Shape:	U Shape	Terminal Type:	Threaded, Non-threaded
Max. Working Temperature:	1600°C	Heating Zone:	Single Zone, Double Zone, Three Zone
Voltage:	220V, 380V, 400V, 480V	Thermal Conductivity:	14W/m·K
Diameter:	9mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm	Cold End Length:	150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Terminal Material:	Molybdenum Disilicide (MoSi2)	Power:	1.5kW, 2kW, 2.5kW, 3kW, 3.5kW, 4kW, 4.5kW, 5kW, 6kW, 7kW, 8kW, 9kW, 10kW
Resistance:	1.2Ω, 1.5Ω, 1.8Ω, 2.2Ω, 2.6Ω, 3.0Ω, 3.5Ω, 4.0Ω, 4.5Ω, 5.0Ω, 6.0Ω, 7.0Ω, 8.0Ω	Maximum Surface Load:	9W/cm²
Length:	300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm	Hot Zone Length:	150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm

Shape:	U Shape
Terminal Type:	Threaded, Non-threaded
Max. Working Temperature:	1600°C
Heating Zone:	Single Zone, Double Zone, Three Zone
Voltage:	220V, 380V, 400V, 480V
Thermal Conductivity:	14W/m·K
Diameter:	9mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm
Cold End Length:	150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Terminal Material:	Molybdenum Disilicide (MoSi2)
Power:	1.5kW, 2kW, 2.5kW, 3kW, 3.5kW, 4kW, 4.5kW, 5kW, 6kW, 7kW, 8kW, 9kW, 10kW
Resistance:	1.2Ω, 1.5Ω, 1.8Ω, 2.2Ω, 2.6Ω, 3.0Ω, 3.5Ω, 4.0Ω, 4.5Ω, 5.0Ω, 6.0Ω, 7.0Ω, 8.0Ω
Maximum Surface Load:	9W/cm²
Length:	300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm
Hot Zone Length:	150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm

Product Description

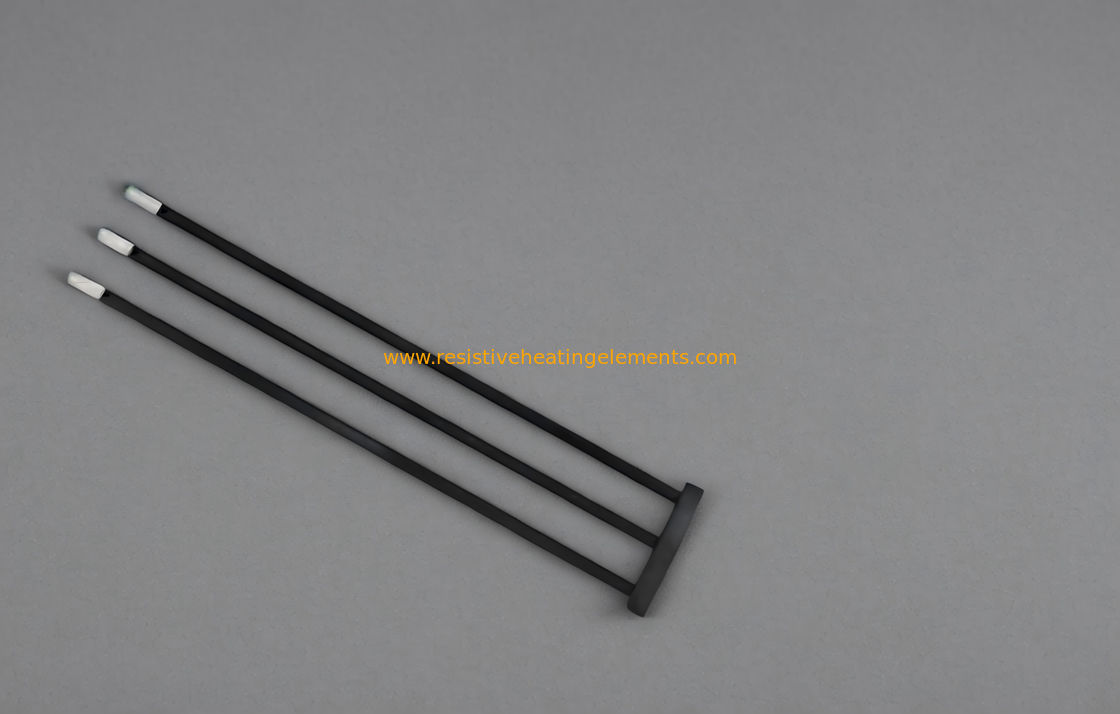

W Type SiC Heating Elements
Although the W-shaped silicon carbide rod has many advantages, there may be some challenges associated with its use. For example, the threaded connection may require careful installation to ensure a tight fit and prevent leakage of heat. Additionally, the silicon carbide material may be brittle and require careful handling to avoid damage.
To address these issues, manufacturers can provide detailed installation instructions and guidelines. They can also offer training and support to ensure that users are able to install and operate the rod correctly. In terms of handling, proper packaging and transportation methods can be implemented to minimize the risk of damage.
Another potential issue is the compatibility of the rod with different types of equipment. To ensure compatibility, manufacturers can provide specifications and recommendations for use with specific types of furnaces and heating systems.

Maximum Load	30kg
Power	2.5kW
Shape	W Shape
Maximum Operating Temperature	1600°C
Hot Zone Length	200mm
Material	Silicon Carbide
