380V SiC Element 1400C Moly Disilicide Heating Elements W Shaped

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                380v sic element, sic element 1400c, 1400c moly disilicide heating elements


Wattage:	600-3000W	Maximum Operating Temperature:	1400°C
Diameter:	3/6/9/12/18/24mm	Terminal Type:	Straight/Right Angle
Surface Load:	5-7W/cm²	Material:	Silicon Carbide
Shape:	W Shape	Hot Zone Length:	150-250mm
Voltage:	220V/380V	Terminal Material:	Molybdenum Disilicide
Cold End Length:	150-250mm	Length:	300/400/500/600/700/800/900/1000/1200mm
Application:	High Temperature Furnace	Resistance:	1.2-2.0Ω

Wattage:	600-3000W
Maximum Operating Temperature:	1400°C
Diameter:	3/6/9/12/18/24mm
Terminal Type:	Straight/Right Angle
Surface Load:	5-7W/cm²
Material:	Silicon Carbide
Shape:	W Shape
Hot Zone Length:	150-250mm
Voltage:	220V/380V
Terminal Material:	Molybdenum Disilicide
Cold End Length:	150-250mm
Length:	300/400/500/600/700/800/900/1000/1200mm
Application:	High Temperature Furnace
Resistance:	1.2-2.0Ω

Product Description

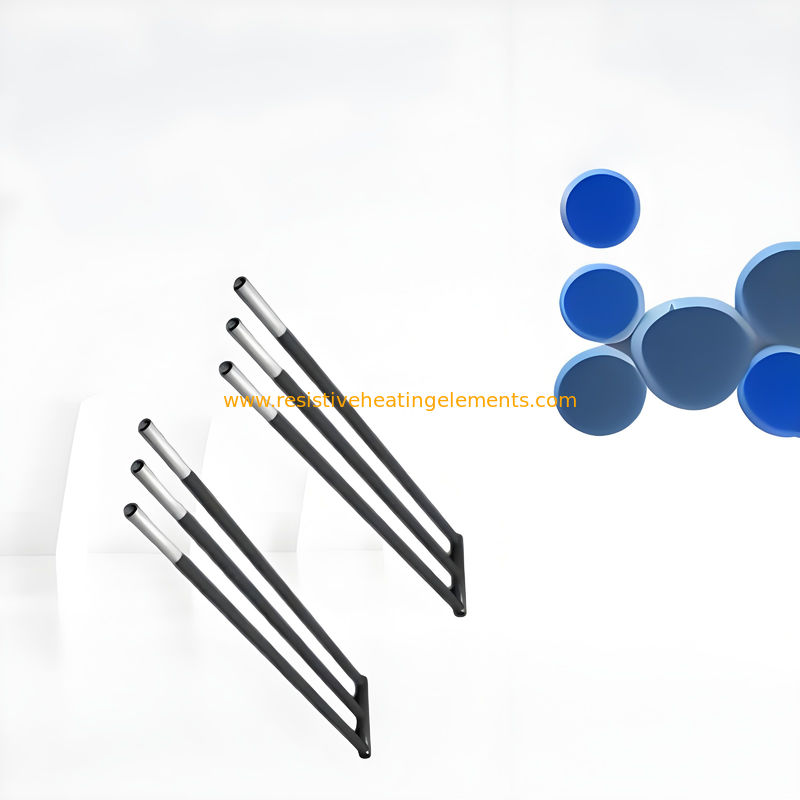

W Type SiC Heating Elements
What is a W-shaped silicon carbide rod? It's a specialized component designed for heating applications. The heating part of the rod consists of three parallel rods, which are crucial for generating heat. The electrodes at one end allow for the flow of electricity, while the other end is connected to the connecting part.
The connection between the heating part and the connecting part is achieved through a bolt and a connecting plate with screw holes. This design provides a secure and reliable connection.
Silicon carbide is a material known for its excellent thermal properties. It can withstand high temperatures and has high thermal conductivity. This makes it ideal for use in heating elements.
The W-shaped design of the rod may have several advantages. It could provide better heat distribution, increased stability, and easier installation.
In conclusion, the W-shaped silicon carbide rod is an important innovation in the field of heating technology. Its unique design and characteristics make it a valuable tool for various industries.

Wattage	600-3000W
Maximum Operating Temperature	1400°C
Diameter	3/6/9/12/18/24mm
Terminal Type	Straight/Right Angle
Surface Load	5-7W/cm²
Material	Silicon Carbide
Shape	W Shape
Hot Zone Length	150-250mm
