SG Type SiC Heating Element

Name: SG Type SiC Heating Element
Brand: ZHENGZHOU SONGYU HIGH TEMPERATURE TECHNOLOGY CO.,LTD
SKU: SG Type
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SONGYU

Model Number: SG Type

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Description

Highlight:

Product Description

SG Type SiC Heating element

The SG Type Silicon Carbide (SiC) Heating Element is a high-performance ceramic heating component designed for extreme temperature applications. Manufactured from high-purity silicon carbide, it combines exceptional thermal conductivity, oxidation resistance, and mechanical strength, making it ideal for industrial furnaces.

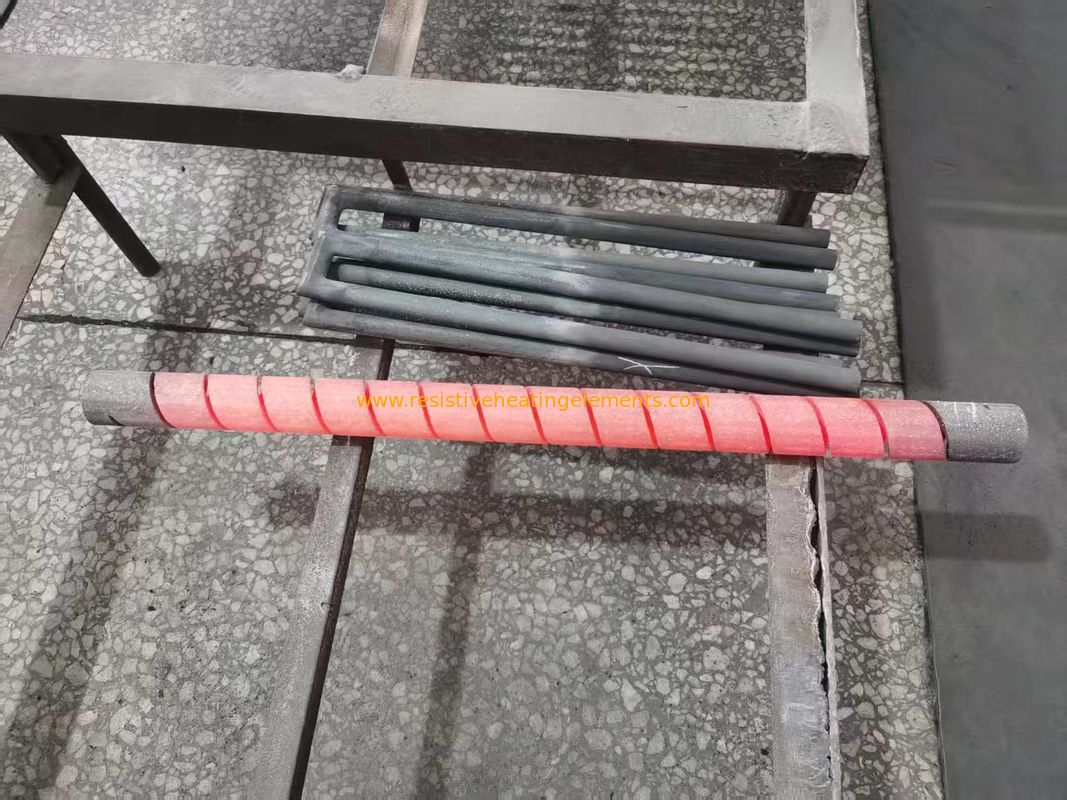

SG Type SiC Heating Element 0

(1) The temperature distribution characteristics of silicon carbide rods are considered qualified only when the inspection specification for new shipments is within Δ 60 ℃ of the effective heating length. Of course, the temperature distribution will increase with aging and may eventually reach 200 ℃. The specific temperature distribution changes also vary depending on the furnace atmosphere and usage conditions.
(2) Silicon carbon rods have a shorter lifespan as the usage temperature increases. Therefore, after the furnace temperature exceeds 1400 ℃, the oxidation rate accelerates and the lifespan is shortened. During use, it is important to avoid excessively high surface temperatures on the silicon carbon rods.

Length	300mm
Operating Voltage	220 V
Features	High Temperature Resistance, Fast Heating, Long Service Life
Shape	Rod
Max Temperature	1600°C
Application	Industrial Furnaces
Heating Zone	Single
Package	Wooden Case
