SG Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                SG Type SiC Heating element, SG Type SiC Heating Element


Product Description

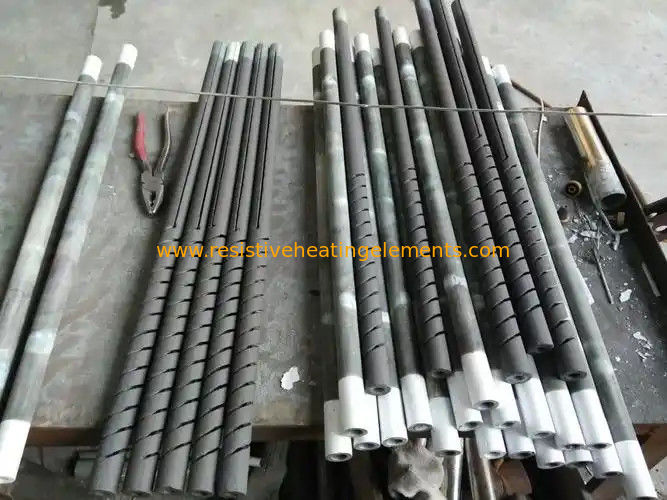

SG Type SiC Heating element

licon carbide rod heating element is a non-metallic rod or tube shaped high temperature electric heating element. It uses selected ultra-high purity green hexagonal silicon carbide as the main material, and is made into billets and silicon crystals at 2400ºC. In an oxidizing atmosphere, the service temperature can reach 1450°C, and the continuous service life can reach 2000 hours.
SG type silicon carbide components, single thread silicon carbide components are electronic components specially machined on the basis of equal diameter rods through accurate calculation and design, and the temperature can reach 1500. It is mainly used for heating furnaces with special needs, and can also replace gun-type silicon carbide rods in the glass industry. Its characteristics are: more energy saving, simple operation, high temperature and long service life.

Technical Index of Silicon Carbide SiC Heating Elements

specific gravity	2.6~2.8g/cm³	bend strength	>300kg
hardness	>9 MOH′S	Tensile strength	>150kg/cm³
porosity rate	<30%	Radiancy	0.85

Features of Silicon Carbide SiC Heating Elements

1. High strength and excellent shock resistance;

2. Heat source is free of noise and air pollution;

3. Anti-oxidization;

4. Anti-corrosion,

5. Long service life,

6. Little deformation,

7. Easy installation and maintenance.

8. Excellent specific rate of heat zone resistance and cold end resistance,

9. Avoiding over-temperature of cold ends to damage the furnace body.

10. Saving energy

Following should be provided when inquiring or ordering SG (Single-thread) Silicon Carbide Heating Elements:

Type: SG

Diameters,OD, mm

Length of the Heating Section or the Hot Zone, HZ, mm

Length of the Cold Zone, CZ, mm

Overall Length,OL, mm

Example: Type SG, OD=30mm, HZ=1000mm, CZ=300mm, OL=1600mm, Resistance 1.70Ω

Specified as:

SPK SG30/1000/300/1.70Ω
