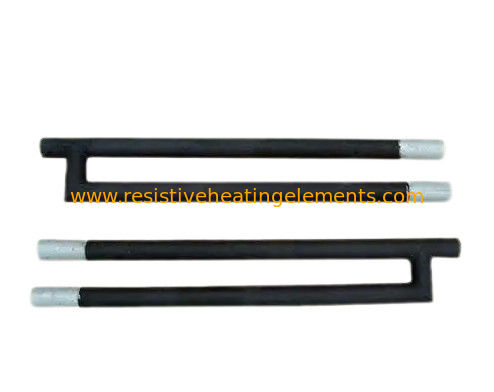

G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: 10-1000

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Thermal Conductivity:	120 W/mK	Power:	Up To 12kW
Shape:	G Type	Hot Zone Length:	150mm - 1800mm
Density:	2.6 G/cm3	Maximum Load Capacity:	Up To 45kg
Voltage:	Up To 240V	Cold End Length:	150mm - 600mm
Maximum Operating Temperature:	1600°C	Length:	300mm - 2400mm
Application:	High Temperature Furnaces, Kilns, And Heat Treatment Processes	Material:	Silicon Carbide (SiC)
Product Type:	Heating Element	Diameter:	8mm - 54mm

Thermal Conductivity:	120 W/mK
Power:	Up To 12kW
Shape:	G Type
Hot Zone Length:	150mm - 1800mm
Density:	2.6 G/cm3
Maximum Load Capacity:	Up To 45kg
Voltage:	Up To 240V
Cold End Length:	150mm - 600mm
Maximum Operating Temperature:	1600°C
Length:	300mm - 2400mm
Application:	High Temperature Furnaces, Kilns, And Heat Treatment Processes
Material:	Silicon Carbide (SiC)
Product Type:	Heating Element
Diameter:	8mm - 54mm

Product Description

G Type SiC Heating Elements

Silicon carbide electric heating elements have many remarkable advantages. Firstly, silicon carbide rods are hard and brittle, with an extremely small expansion coefficient. They perform excellently in both cold and hot environments, having excellent cold and heat resistance and being not prone to deformation. Secondly, the chemical stability of this element is extremely good, with strong acid resistance, and it will not react with strong acids even when in contact with them. Moreover, its heat dissipation performance is powerful, enabling accurate control of the temperature.

Physical Properties of Silicon Carbide (SiC) Heating Elements

specific gravity	2.6~2.8g/cm³	bend strength	>300kg
hardness	>9MOH’S	tensile strength	>150kg/cm³
porosity rate	<30%	radiance	0.85

Surface Load Recommended

Furnace temperature	1100	1200	1300	1350	1400	1450
Surface load of hot zone (w/cm²)	<17	<13	<9	<7	<5	<4

Please measure the size of OD / D / CZ / HZ / A in mm according to the above figure. I will quote you according to the specific size and quantity.
