SG Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v sic heater, 300mm sic heater, 220v sic heating element


Max Operating Temperature:	1600°C	Hot Zone Length:	200mm
Voltage:	220V	Density:	3.1 G/cm³
Length:	300mm	Cold Zone Length:	100mm
Surface Load:	12 W/cm²	Heating Zone:	Single
Diameter:	12mm	Shape:	U Shape
Wattage:	1200W	Resistance:	1.6Ω
Thermal Conductivity:	150 W/m·K	Maximum Bending Radius:	30mm

Max Operating Temperature:	1600°C
Hot Zone Length:	200mm
Voltage:	220V
Density:	3.1 G/cm³
Length:	300mm
Cold Zone Length:	100mm
Surface Load:	12 W/cm²
Heating Zone:	Single
Diameter:	12mm
Shape:	U Shape
Wattage:	1200W
Resistance:	1.6Ω
Thermal Conductivity:	150 W/m·K
Maximum Bending Radius:	30mm

Product Description

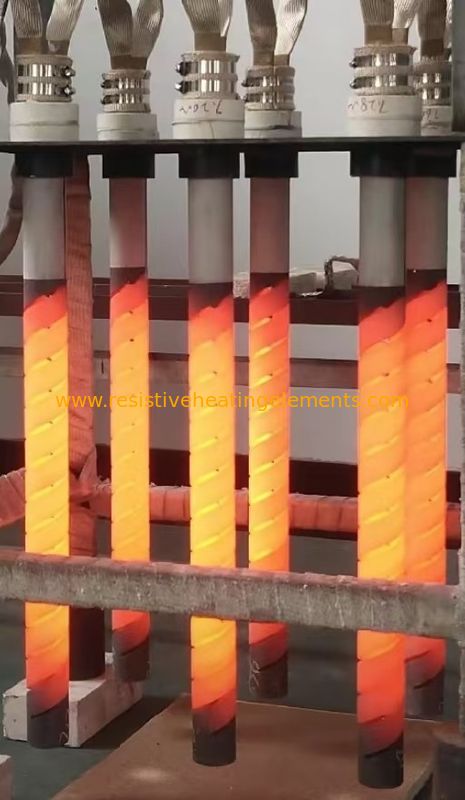

SG Type SiC Heating element

During the process of heating with electricity, the resistivity of silicon carbide rods exhibits nonlinear changes with different temperatures. At room temperature to 800 ° C (domestic silicon carbide rod), the resistivity rapidly decreases with increasing temperature, reaching its lowest value at 800 ° C. As the temperature further increases, the resistivity begins to increase, and the magnitude of the increase becomes increasingly higher. The maximum operating temperature of silicon carbide rods cannot exceed 1450 ° C. If the operating temperature exceeds this value, silicon carbide rods will rapidly age and their service life will be seriously affected.

Max Operating Temperature	1600°C
Hot Zone Length	200mm
Voltage	220V
Density	3.1 g/cm³
Length	300mm
Cold Zone Length	100mm
Surface Load	12 W/cm²
Heating Zone	Single
