SG Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v sic heater, 1500w sic heater, 220v sic heating element


Cold Zone Length:	50mm	Diameter:	8mm
Maximum Bending Strength:	600MPa	Heating Zone Length:	150mm
Thermal Conductivity:	120W/m·K	Voltage:	220V
Length:	300mm	Maximum Operating Temperature:	1600°C
Wattage:	1500W	Thermal Shock Resistance:	Good
Resistance:	1.6Ω	Density:	2.7g/cm³
Shape:	U Shape	Hot Zone Length:	100mm

Cold Zone Length:	50mm
Diameter:	8mm
Maximum Bending Strength:	600MPa
Heating Zone Length:	150mm
Thermal Conductivity:	120W/m·K
Voltage:	220V
Length:	300mm
Maximum Operating Temperature:	1600°C
Wattage:	1500W
Thermal Shock Resistance:	Good
Resistance:	1.6Ω
Density:	2.7g/cm³
Shape:	U Shape
Hot Zone Length:	100mm

Product Description

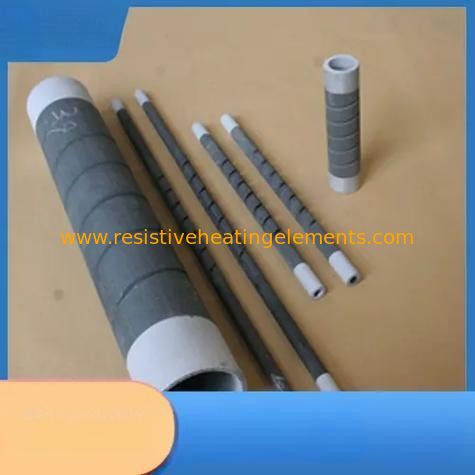

SG Type SiC Heating element

Silicon carbon rods have good heat resistance and oxidation resistance, good heating ability, small expansion coefficient, low deformation under high temperature conditions, good chemical stability, corrosion resistance, and other advantages. Silicon carbon rod electric heating elements have a long service life, are easy to install, and are easy to maintain.

Cold Zone Length	50mm
Diameter	8mm
Maximum Bending Strength	600MPa
Heating Zone Length	150mm
Thermal Conductivity	120W/m·K
Voltage	220V
Length	300mm
Maximum Operating Temperature	1600°C
