SG Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v sic heater, 300mm sic heater, 220v sic heating element


Max Operating Temperature:	1600°C	Hot Zone Length:	200mm
Voltage:	220V	Density:	3.1 G/cm³
Length:	300mm	Cold Zone Length:	100mm
Surface Load:	12 W/cm²	Heating Zone:	Single
Diameter:	12mm	Shape:	U Shape
Wattage:	1200W	Resistance:	1.6Ω
Thermal Conductivity:	150 W/m·K	Maximum Bending Radius:	30mm

Max Operating Temperature:	1600°C
Hot Zone Length:	200mm
Voltage:	220V
Density:	3.1 G/cm³
Length:	300mm
Cold Zone Length:	100mm
Surface Load:	12 W/cm²
Heating Zone:	Single
Diameter:	12mm
Shape:	U Shape
Wattage:	1200W
Resistance:	1.6Ω
Thermal Conductivity:	150 W/m·K
Maximum Bending Radius:	30mm

Product Description

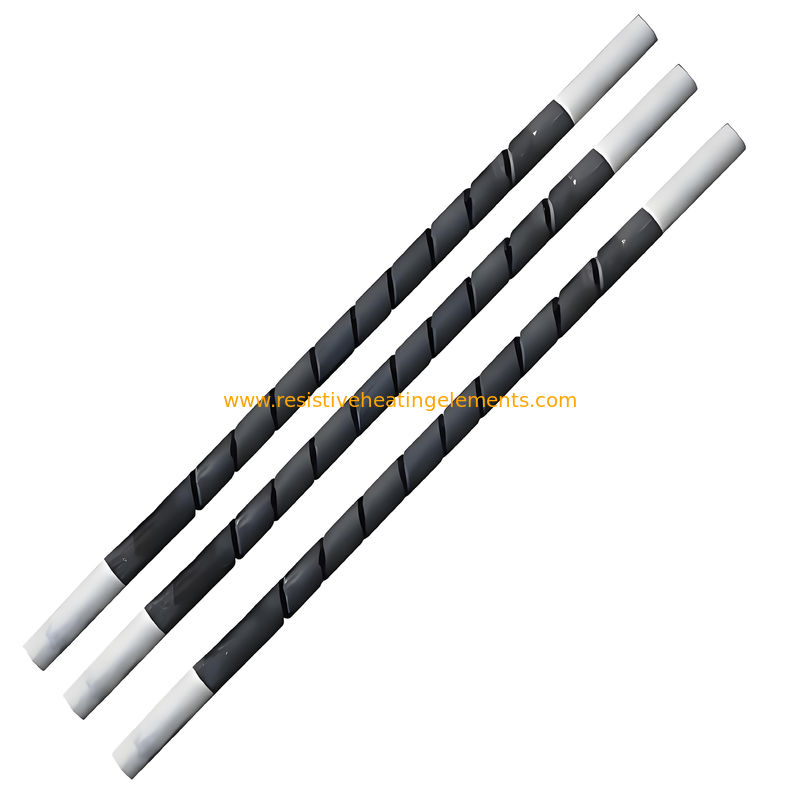

SG Type SiC Heating element

The single-threaded (SG) silicon carbide rod is an engineering marvel that offers unrivaled heating performance and durability. Its unique single-thread design provides a secure and stable connection, while the high-quality silicon carbide material ensures excellent heat resistance and electrical conductivity.
The SG rod is capable of withstanding extremely high temperatures, making it ideal for use in high-temperature furnaces and kilns. Its advanced manufacturing process ensures consistent quality and performance, while its long service life reduces the need for frequent replacements.
In addition to its heating capabilities, the SG silicon carbide rod also offers excellent thermal shock resistance. This allows it to withstand rapid temperature changes without cracking or breaking, ensuring reliable operation even in harsh environments.
Whether used in industrial or laboratory settings, the single-threaded (SG) silicon carbide rod is a reliable and efficient heating solution that offers exceptional performance and value.

Max Operating Temperature	1600°C
Hot Zone Length	200mm
Voltage	220V
Density	3.1 g/cm³
Length	300mm
Cold Zone Length	100mm
Surface Load	12 W/cm²
Heating Zone	Single
