SG Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5kw sic heater, 220v sic heater, 5kw sic heating element


Diameter:	8mm	Voltage:	220V
Shape:	U Shape	Insulation Material:	High Purity Recrystallized SiC
Terminal Connection:	Threaded Stud	Length:	300mm
Maximum Power:	1.5kW	Resistance:	1.2Ω
Heating Zone:	Single Zone	Hot Zone Length:	200mm
Heating Element Material:	Silicon Carbide (SiC)	Terminal Material:	Nickel-chrome Alloy
Maximum Operating Temperature:	1600℃	Cold Zone Length:	100mm

Diameter:	8mm
Voltage:	220V
Shape:	U Shape
Insulation Material:	High Purity Recrystallized SiC
Terminal Connection:	Threaded Stud
Length:	300mm
Maximum Power:	1.5kW
Resistance:	1.2Ω
Heating Zone:	Single Zone
Hot Zone Length:	200mm
Heating Element Material:	Silicon Carbide (SiC)
Terminal Material:	Nickel-chrome Alloy
Maximum Operating Temperature:	1600℃
Cold Zone Length:	100mm

Product Description

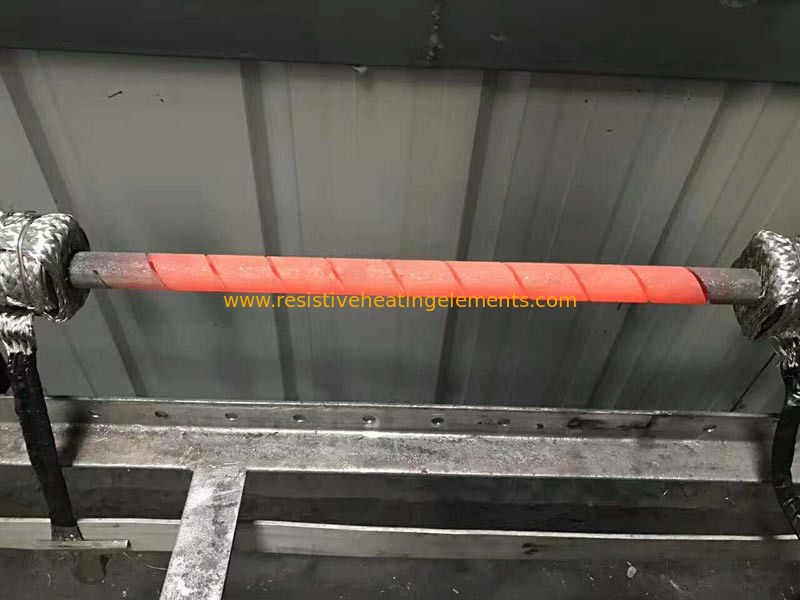

SG Type SiC Heating element

Silicon carbide electric heating element (silicon carbon rod) is a rod-shaped non-metallic high-temperature electric heating element made from high-quality green silicon carbide as the main raw material, processed into blanks, high-temperature silicification, and recrystallization. Compared with metal electric heating elements, this component has the characteristics of high operating temperature, oxidation resistance, corrosion resistance, long service life, minimal deformation, and easy installation and maintenance. Therefore, it is widely used in various high-temperature electric furnaces and other electric heating equipment in industries such as magnetic materials, powder metallurgy, ceramics, glass, metallurgy, and machinery.
Our silicon carbide electric heating elements adopt a new cold end production process, which has excellent resistance ratio between hot and cold ends, energy saving, long service life, and avoids damage to the furnace body caused by high cold end temperature.

Max Operating Temperature	1600°C
Hot Zone Length	200mm
Voltage	220V
Density	3.1 g/cm³
Length	300mm
Cold Zone Length	100mm
Surface Load	12 W/cm²
Heating Zone	Single
