M Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                M Type SiC Heating element, M Type SiC Heating Element


Shape:	Rod	Tensile Strength:	150-200 MPa
Flexural Strength:	400-500 MPa	Elastic Modulus:	300-350 GPa
Purity:	≥ 98.5%	Maximum Temperature:	1400°C
Density:	2.6-2.8 G/cm3	Compressive Strength:	600-800 MPa
Diameter:	3/6, 4/9, 6/12, 9/18, 12/24, 15/27, 18/33, 21/40, 24/48, 27/54	Specific Heat:	0.17-0.18 Cal/g.°C
Type:	M Type	Thermal Conductivity:	100-120 W/m.K
Material:	SiC	Length:	300-4000mm

Shape:	Rod
Tensile Strength:	150-200 MPa
Flexural Strength:	400-500 MPa
Elastic Modulus:	300-350 GPa
Purity:	≥ 98.5%
Maximum Temperature:	1400°C
Density:	2.6-2.8 G/cm3
Compressive Strength:	600-800 MPa
Diameter:	3/6, 4/9, 6/12, 9/18, 12/24, 15/27, 18/33, 21/40, 24/48, 27/54
Specific Heat:	0.17-0.18 Cal/g.°C
Type:	M Type
Thermal Conductivity:	100-120 W/m.K
Material:	SiC
Length:	300-4000mm

Product Description

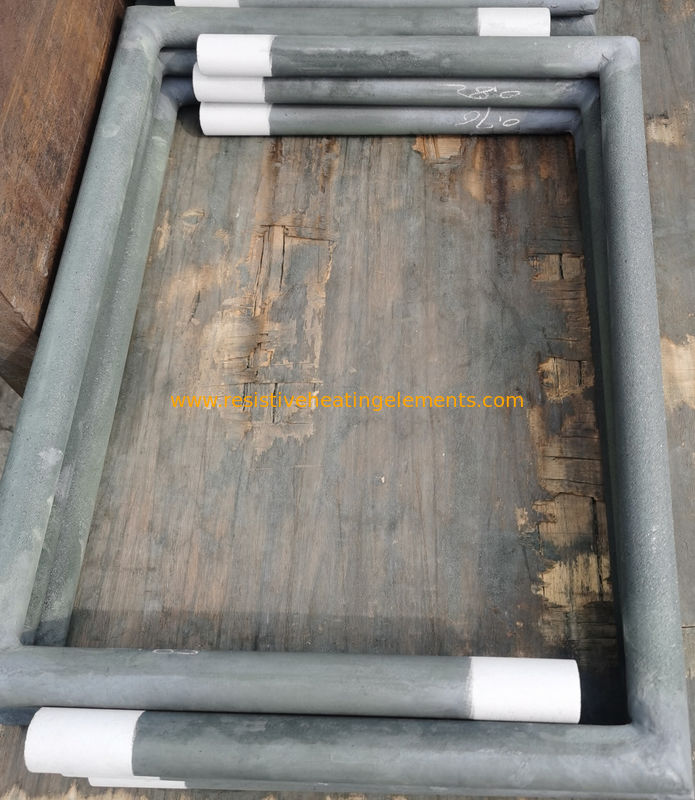

M Type SiC Heating element

Wide U-shaped silicon carbide rod, also known as gate shaped silicon carbide rod, with a diameter of 8-54mm that can be customized. High quality silicon carbide products adopt new process technology, and the operating temperature of silicon carbide rods can reach 1450 degrees.

Shape	Rod
Tensile Strength	150-200 MPa
Flexural Strength	400-500 MPa
Purity	≥ 98.5%
Maximum Temperature	1400°C
Density	2.6-2.8 g/cm3
Compressive Strength	600-800 MPa
Specific Heat	0.17-0.18 cal/g.°C
