M Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v sic heater, 300mm sic heater, 220v sic heating element


Application:	High Temperature Furnace	Watt Density:	9 W/cm²
Diameter:	12mm	Length:	300mm
Cold Zone Length:	100mm	Resistance:	1.2 Ω
Thermal Conductivity:	120 W/m·K	Hot Zone Length:	200mm
Maximum Load:	8 Kg	Heating Zone:	Single Zone
Voltage:	220V	Max Operating Temperature:	1600°C
Shape:	U Shape	Thermal Shock Resistance:	Good

Application:	High Temperature Furnace
Watt Density:	9 W/cm²
Diameter:	12mm
Length:	300mm
Cold Zone Length:	100mm
Resistance:	1.2 Ω
Thermal Conductivity:	120 W/m·K
Hot Zone Length:	200mm
Maximum Load:	8 Kg
Heating Zone:	Single Zone
Voltage:	220V
Max Operating Temperature:	1600°C
Shape:	U Shape
Thermal Shock Resistance:	Good

Product Description

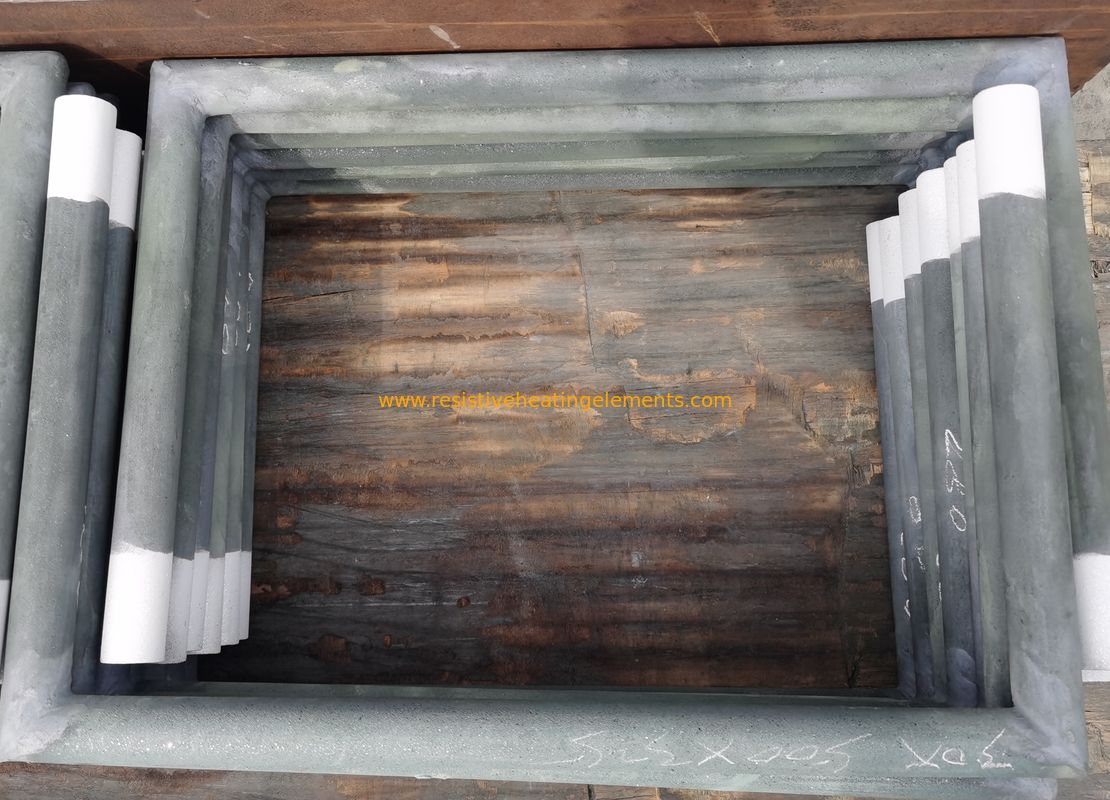

M Type SiC Heating element

Door type silicon carbide rod (M-type): suitable for heating the bottom or both sides of large box type furnaces and trolley furnaces, with high temperature control accuracy, convenient wiring, and small temperature differences. The electrical properties of silicon carbide rod. Silicon carbide rod is a nonlinear resistor with large dispersion at room temperature. When heated with electricity, the resistance value gradually decreases from room temperature to 850 ℃± 50 ℃, and slowly increases between 800 ℃± 900 ℃. Therefore, the resistance value is basically stable between 1050 ℃± 50 ℃. At this time, the measured resistance is relatively standard and easy to match during installation. The chemical properties of silicon carbon rods: Silicon carbon rods have good chemical stability and can be used continuously in dry and clean air (1450 ℃) for up to 6000 hours. Long term use can react with oxygen and water vapor as follows: Sic 2O2 → SiO2 CO2Sic 4H2O=SiO2 4H2 CO2. To use silicon carbon rods reasonably, the following harmful gases should be avoided from contacting the components: hydrogen (H2) can damage the structure of SiC and reduce the mechanical strength of the components. Nitrogen (N2) can prevent the oxidation of SiC below 1200 ℃, and react with SiC above 1350 ℃, leading to the decomposition of SiC.

Application	High Temperature Furnace
Watt Density	9 W/cm²
Diameter	12mm
Length	300mm
Cold Zone Length	100mm
Resistance	1.2 Ω
Thermal Conductivity	120 W/m·K
Hot Zone Length	200mm
