M Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v sic heater, 300mm sic heater, 220v sic heating element


Application:	High Temperature Heating	Shape:	Rod
Power:	500W	Maximum Load:	10kg
Maximum Operating Temperature:	1600°C	Voltage:	220V
Warranty:	1 Year	Resistance:	1.2Ω
Heating Zone:	Single	Diameter:	6mm
Length:	300mm	Thermal Conductivity:	120 W/mK
Density:	3.21 G/cm³	Material:	Silicon Carbide

Application:	High Temperature Heating
Shape:	Rod
Power:	500W
Maximum Load:	10kg
Maximum Operating Temperature:	1600°C
Voltage:	220V
Warranty:	1 Year
Resistance:	1.2Ω
Heating Zone:	Single
Diameter:	6mm
Length:	300mm
Thermal Conductivity:	120 W/mK
Density:	3.21 G/cm³
Material:	Silicon Carbide

Product Description

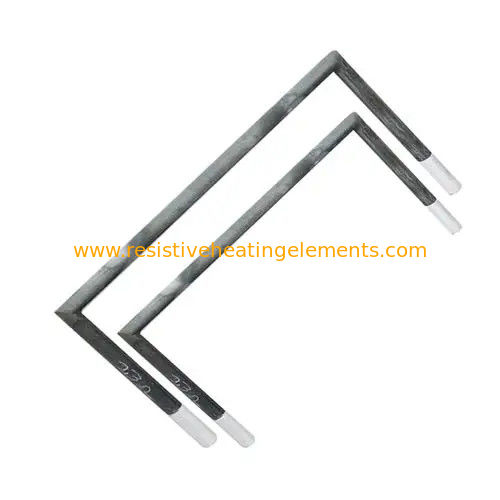

M Type SiC Heating element

Wide gate silicon carbide rod is a special type of silicon carbide rod, characterized by widening the distance between U-shaped silicon carbide rods to over 300mm. It usually consists of two vertical cold ends and one transverse hot end. This design makes it more convenient to use wide door silicon carbide rods in situations where the sides are narrow, wiring is not possible, or special workpieces are sintered.

Shape	Rod
Tensile Strength	150-200 MPa
Flexural Strength	400-500 MPa
Purity	≥ 98.5%
Maximum Temperature	1400°C
Density	2.6-2.8 g/cm3
Compressive Strength	600-800 MPa
Specific Heat	0.17-0.18 cal/g.°C
