M Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                furnaces sic heater, furnaces sic heating element, high temperature sic heater


Applications:	High Temperature Furnaces, Heat Treatment, Sintering, Ceramics, Glass, Metallurgy, Etc.	Maximum Temperature:	1400°C
Shape:	U, W, Spiral, Rod, Straight	Thermal Conductivity:	120 W/mK
Flexural Strength:	400 MPa	Compressive Strength:	2500 MPa
Density:	2.6 G/cm3	Specific Heat:	0.71 J/gK
Purity:	≥ 98%	Type:	M Type
Electrical Resistivity:	1.5x10^-4 Ohm-cm	Material:	SiC
Diameter:	3/6, 4/9, 6/12, 9/18, 12/24, 18/36, 24/48	Length:	150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850

Applications:	High Temperature Furnaces, Heat Treatment, Sintering, Ceramics, Glass, Metallurgy, Etc.
Maximum Temperature:	1400°C
Shape:	U, W, Spiral, Rod, Straight
Thermal Conductivity:	120 W/mK
Flexural Strength:	400 MPa
Compressive Strength:	2500 MPa
Density:	2.6 G/cm3
Specific Heat:	0.71 J/gK
Purity:	≥ 98%
Type:	M Type
Electrical Resistivity:	1.5x10^-4 Ohm-cm
Material:	SiC
Diameter:	3/6, 4/9, 6/12, 9/18, 12/24, 18/36, 24/48
Length:	150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850

Product Description

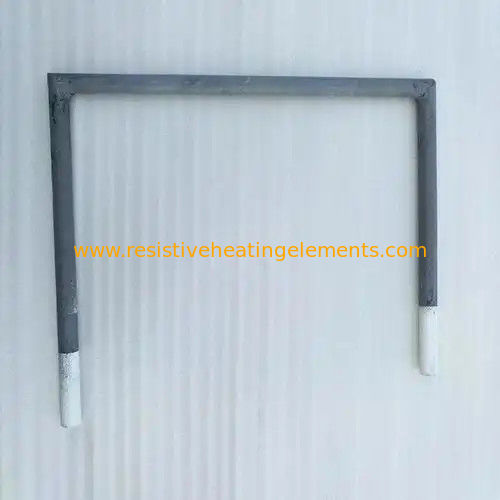

M Type SiC Heating element

Structural characteristics
The structural characteristics of wide gate silicon carbide rods mainly include:

U-shaped design: Two vertical cold ends and one cross-sectional hot end, suitable for situations where narrow areas on both sides cannot be wired.
Distance widening: When the distance is over 300mm, it increases the width of the heating area and is suitable for situations that require large-area heating.
Usage scenarios
Wide door silicon carbide rods are mainly used in the following scenarios:

Large box furnace: suitable for heating the bottom or sides of large box furnaces, with the advantages of high temperature control accuracy, convenient wiring, and small temperature difference.
Special workpiece sintering: In traditional processing furnaces, due to the wide distance and small processing quantity per time, the cost is high, but it is suitable for the sintering needs of special workpieces.
Material characteristics
The material characteristics of wide gate silicon carbide rods include:

High temperature resistance: The operating temperature can reach 1450 ℃, and continuous use can last up to 2000 hours.
Antioxidant: Continuous use in dry and clean air, with a lifespan of up to 6000 hours.
Chemical stability: It has good chemical stability and can maintain stability at high temperatures.

Application	High Temperature Furnace
Watt Density	9 W/cm²
Diameter	12mm
Length	300mm
Cold Zone Length	100mm
Resistance	1.2 Ω
Thermal Conductivity	120 W/m·K
Hot Zone Length	200mm
