M Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220v sic heater, 3000w sic heater, 220v sic heating element


Density:	2.6g/cm³	Voltage:	220V
Maximum Bending Strength:	45 MPa	Maximum Operating Temperature:	1500°C
Application:	High Temperature Furnace	Max Temperature:	1600°C
Length:	300mm	Maximum Compressive Strength:	300 MPa
Diameter:	12mm	Shape:	U Shape
Wattage:	3000W	Heating Zone:	Single Zone
Thermal Conductivity:	120 W/m·K	Resistance:	1.2Ω

Density:	2.6g/cm³
Voltage:	220V
Maximum Bending Strength:	45 MPa
Maximum Operating Temperature:	1500°C
Application:	High Temperature Furnace
Max Temperature:	1600°C
Length:	300mm
Maximum Compressive Strength:	300 MPa
Diameter:	12mm
Shape:	U Shape
Wattage:	3000W
Heating Zone:	Single Zone
Thermal Conductivity:	120 W/m·K
Resistance:	1.2Ω

Product Description

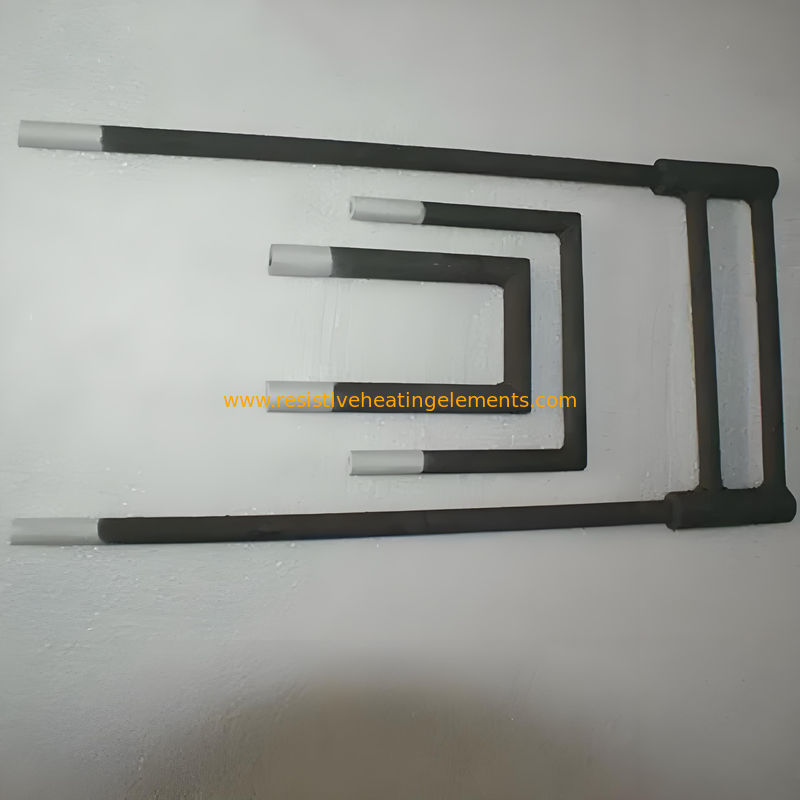

M Type SiC Heating element

One of the standout features of the M-type silicon carbide rod is its durability. It can withstand extremely high temperatures, up to 1600 degrees Celsius, without losing its structural integrity. This makes it ideal for use in harsh industrial environments such as furnaces, kilns, and heat treatment chambers. The robust construction ensures a long service life, reducing the need for frequent replacements and minimizing downtime.

Material	Silicon Carbide (SiC)
Length	300-3000mm
Max Operating Temperature	1600°C
Resistance	1.2-2.0Ω
Features	High temperature resistance, corrosion resistance, long service life
Product Type	Heating element
Terminal	Threaded/Non-threaded
